6364288-1
ActiveTE Connectivity AMP Connectors
CONN RJ-45 F 8 POS 1.02MM SOLDER RA THRU-HOLE 8 TERMINAL 1 PORT CAT 5 BOX/PACKAGE/TRAY
6364288-1
ActiveTE Connectivity AMP Connectors
CONN RJ-45 F 8 POS 1.02MM SOLDER RA THRU-HOLE 8 TERMINAL 1 PORT CAT 5 BOX/PACKAGE/TRAY
Description
General part information
6364288-1

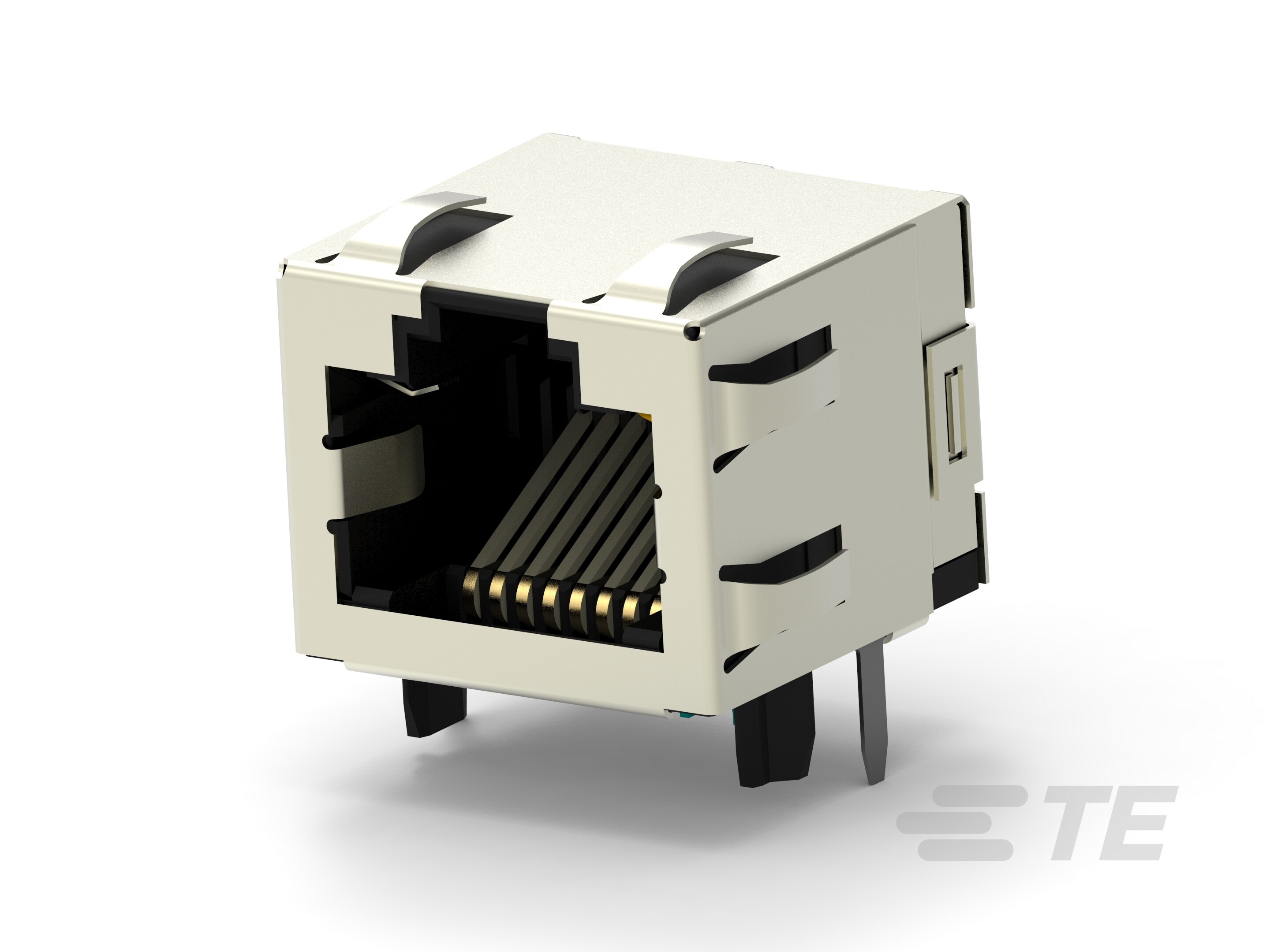

RJ45 Connector, Single Port, 1 x 1, Jack, Shielded, Cat 5, Inverted - Latch Up, 8 Position, Standard Profile, Through Hole - Solder, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 6364288-1 |
|---|---|
| Connector Type | Jack, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Ratings | Cat5 |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
