PNM-2751L-C3310-R
ActivePUI Audio, Inc.
MICROPHONES MICROPHONE -51DB 2VDC
PNM-2751L-C3310-R
ActivePUI Audio, Inc.
MICROPHONES MICROPHONE -51DB 2VDC
Description
General part information
PNM-2751L-C3310-R

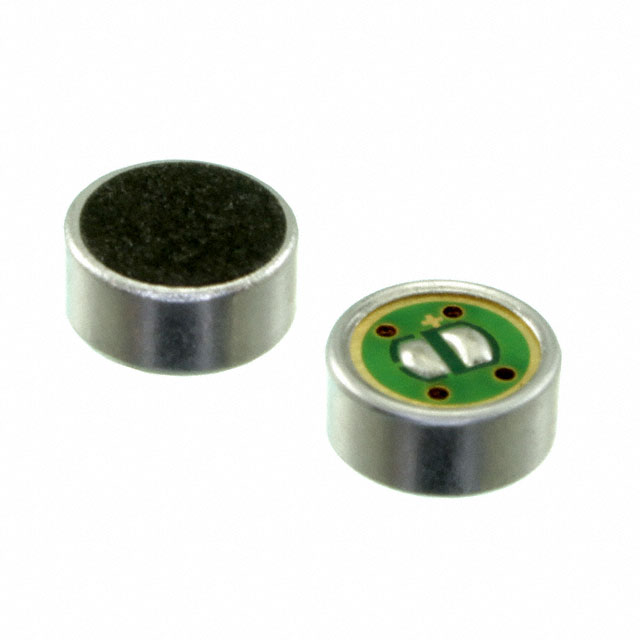

Analog Microphone Electret Condenser Noise Cancelling (-51dB ±4dB) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | PNM-2751L-C3310-R |
|---|---|
| Current - Supply | 500 µA |
| Direction | Noise Cancelling |
| Height (Max) | 0.114 in |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 55 dB |
| Sensitivity (Nominal) | -51 dB |
| Sensitivity Tolerance | 4 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.236 in |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage - Rated | 2 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
