TFM201608ALC-1R0MTCA
ActiveTDK Corporation
FIXED IND 1UH 2.8A 66 MOHM SMD
TFM201608ALC-1R0MTCA
ActiveTDK Corporation
FIXED IND 1UH 2.8A 66 MOHM SMD
Description
General part information
TFM201608ALC-1R0MTCA

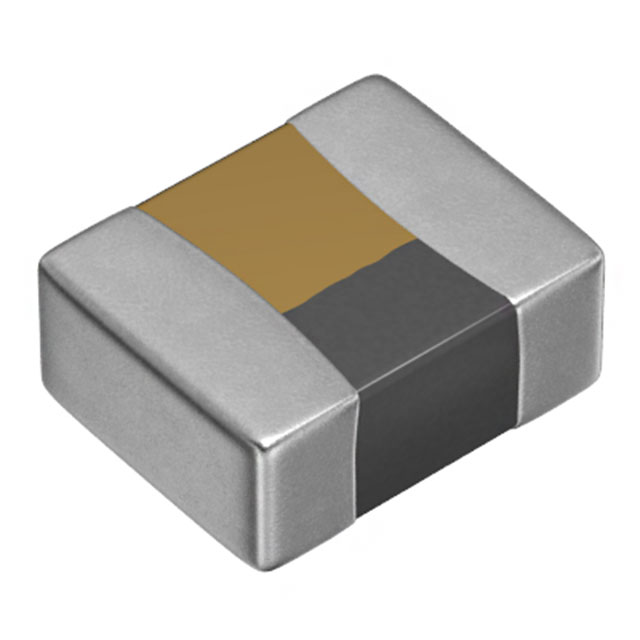

1 µH Shielded Thin Film Inductor 2.8 A 66mOhm Max 0806 (2016 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TFM201608ALC-1R0MTCA |
|---|---|
| Current - Saturation (Isat) | 2.5 A |
| Current Rating | 2.8 A |
| DC Resistance (DCR) (Max) | 66 mOhm |
| Height - Seated (Max) | 0.031 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Package Name | 0806 (2016 Metric) |
| Shielding | Shielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 20 % |
| Type | Thin Film |
