Description

General part information

ZB5AW163

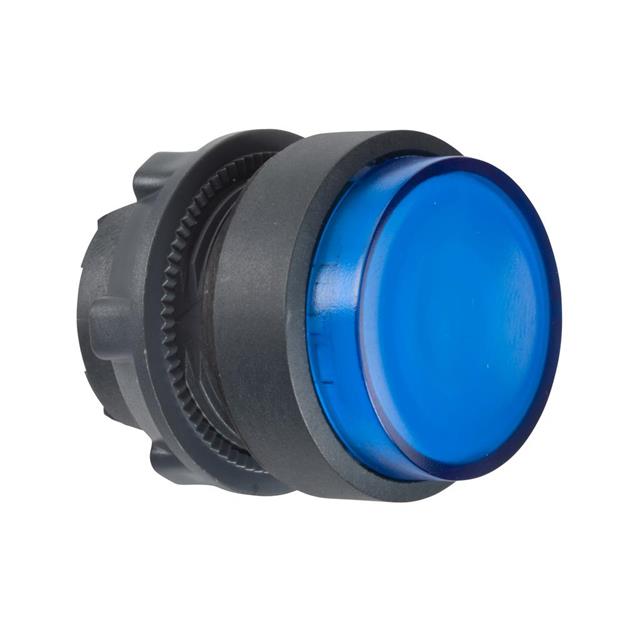

ZB5AW163 is a head for an illuminated pushbutton. This blue projecting illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting elements, minimizing errors in machine control. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66. This makes it ideal for operation in harsh environments. It has standards like UL 508, JIS C8201-5-1, GB 14048.5, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1. It is certified by BV, LROS (Lloyds register of shipping), UL listed, DNV, GL, CSA.

Technical Specifications

Parameters and characteristics for this part

SpecificationZB5AW163
Actuator TypePushbutton, Round
Compatible SeriesHarmony XB5, Schneider
IlluminationIlluminated
Panel Cutout Dimension22 mm
Panel Cutout ShapeRound
RequiresIllumination Source, Contact Block(s)
TypeMomentary
