2227226-3
ActiveTE Connectivity AMP Connectors

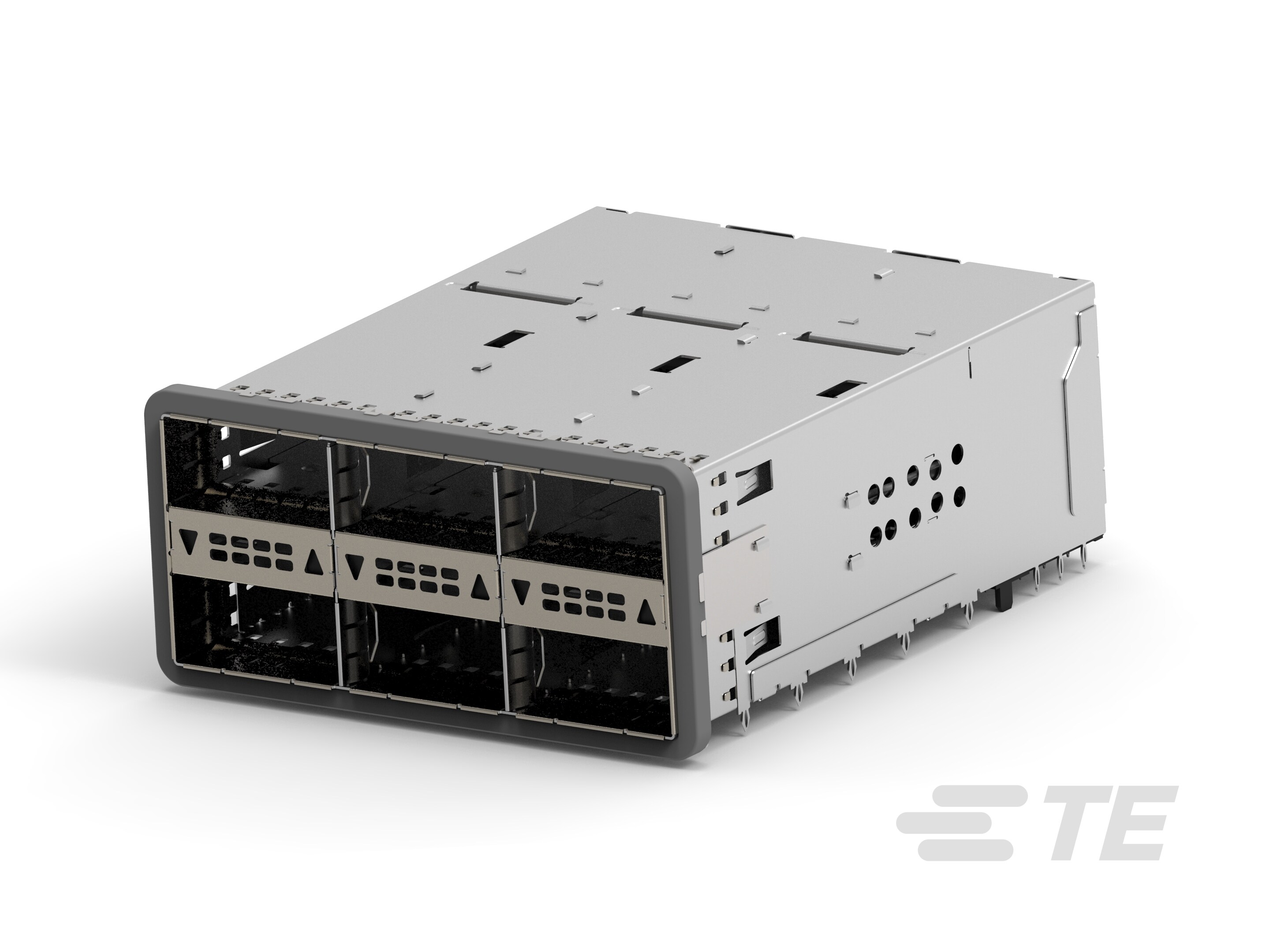

ZQSFP+ STACKED RECEPTACLE ASSEMBLY 2X3
2227226-3
ActiveTE Connectivity AMP Connectors
ZQSFP+ STACKED RECEPTACLE ASSEMBLY 2X3
Description
General part information
2227226-3
zQSFP+, Cage Assembly with Integrated Connector, .8mm [.032in] Centerline, Sealable, Signal, Operating Temperature Range -40 – 85 °C [-40 – 185 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2227226-3 |
|---|---|
| Connector Pin Configuration (Columns) | 3 pins |
| Connector Pin Configuration (Rows) | 2 pins |
| Connector Style | Ganged, Receptacle with Cage |
| Connector Type | ZQSFP+ |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Light Pipe, EMI Shielded |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 228 |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
