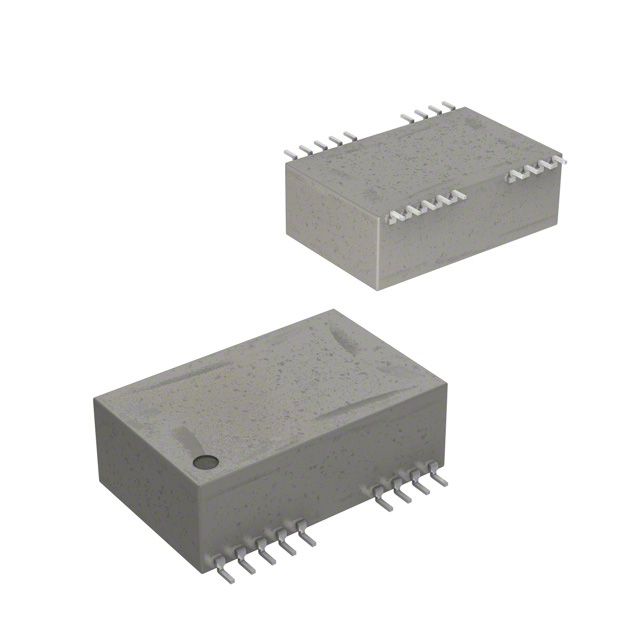

Specification	REC3-2405SR/H1/M/SMD

Applications	ITE (Commercial)
Current - Output (Max)	600 mA
Efficiency	65 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Package Leads	18 Leads
Package Name	24-SMD Module
Power (Watts)	3 W
Size / Dimension Height	0.44 in
Size / Dimension Length	1.26 in
Size / Dimension Width	0.8 in
Type	Isolated Module
Voltage - Input (Max)	27.6 V
Voltage - Input (Min)	20.4 V
Voltage - Isolation	1000 Vrms
Voltage - Output 1	5 V

REC3-S_DR Series

...

Part	Applications	Mounting Type	Current - Output (Max)	Voltage - Output 1	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Min)	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Features	Efficiency	Type	Voltage - Input (Max)	Voltage - Isolation	Power (Watts)	Number of Outputs	Package Leads	Package Name	Voltage - Output 2
Recom Power REC3-1212SR/H1/M	ITE (Commercial)	Through Hole	250 mA	12 V	80 °C	-40 °C	10.8 V	0.8 in	1.26 in	0.4 in	SCP	65 %	Isolated Module	13.2 V	1000 Vrms	3 W	1	12 Leads	24-DIP Module
Recom Power REC3-1205DR/H1/SMD-R	ITE (Commercial)	Surface Mount	300 mA	5 V	80 °C	-40 °C	10.8 V	0.8 in	1.26 in	0.44 in	SCP	75 %	Isolated Module	13.2 V	1000 Vrms	3 W	2	18 Leads	24-SMD Module	-5 V
Recom Power REC3-0505DR/H1	ITE (Commercial)	Through Hole	300 mA	5 V	80 °C	-40 °C	4.5 V	0.8 in	1.26 in	0.4 in	SCP	75 %	Isolated Module	5.5 V	1000 Vrms	3 W	2	12 Leads	24-DIP Module	-5 V
Recom Power REC3-0515SR/H1/M	ITE (Commercial)	Through Hole	200 mA	15 V	80 °C	-40 °C	4.5 V	0.8 in	1.26 in	0.4 in	SCP	65 %	Isolated Module	5.5 V	1000 Vrms	3 W	1	12 Leads	24-DIP Module
Recom Power REC3-2412DR/H1	ITE (Commercial)	Through Hole	125 mA	12 V	80 °C	-40 °C	21.6 V	0.8 in	1.26 in	0.4 in	SCP	75 %	Isolated Module	26.4 V	1000 Vrms	3 W	2	12 Leads	24-DIP Module	-12 V
Recom Power REC3-2405DR/H1/SMD	ITE (Commercial)	Surface Mount	300 mA	5 V	80 °C	-40 °C	21.6 V	0.8 in	1.26 in	0.44 in	SCP	75 %	Isolated Module	26.4 V	1000 Vrms	3 W	2	18 Leads	24-SMD Module	-5 V
Recom Power REC3-0515SR/H1/M/SMD-R	ITE (Commercial)	Surface Mount	200 mA	15 V	80 °C	-40 °C	4.5 V	0.8 in	1.26 in	0.44 in	SCP	65 %	Isolated Module	5.5 V	1000 Vrms	3 W	1	18 Leads	24-SMD Module
Recom Power REC3-1205SR/H1/SMD	ITE (Commercial)	Surface Mount	600 mA	5 V	80 °C	-40 °C	10.8 V	0.8 in	1.26 in	0.44 in	SCP	65 %	Isolated Module	13.2 V	1000 Vrms	3 W	1	18 Leads	24-SMD Module
Recom Power REC3-1205SR/H1	ITE (Commercial)	Through Hole	600 mA	5 V	80 °C	-40 °C	10.8 V	0.8 in	1.26 in	0.4 in	SCP	65 %	Isolated Module	13.2 V	1000 Vrms	3 W	1	12 Leads	24-DIP Module
Recom Power REC3-1205DR/H1M/SMD	ITE (Commercial)	Surface Mount	300 mA	5 V	80 °C	-40 °C	10.8 V	0.8 in	1.26 in	0.44 in	SCP	75 %	Isolated Module	13.2 V	1000 Vrms	3 W	2	18 Leads	24-SMD Module	-5 V
