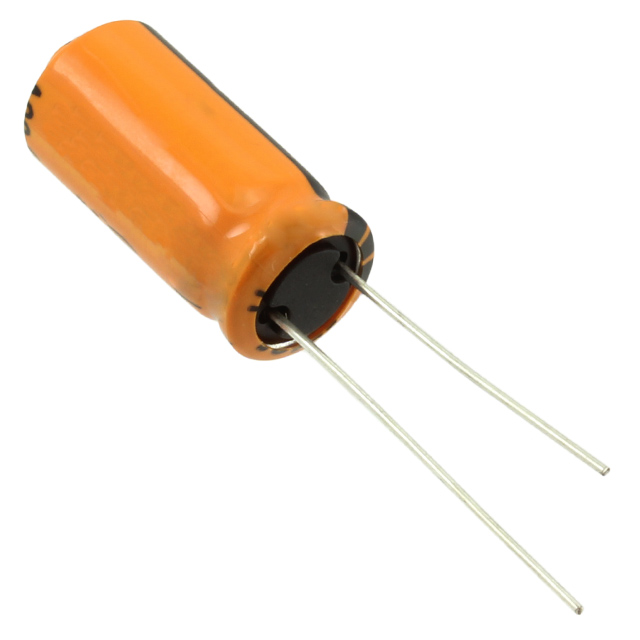

Specification	B41888C6337M000

Applications	Automotive
Capacitance	330 µF
ESR (Equivalent Series Resistance)	84 mOhm
Height - Seated (Max)	0.866 in
Impedance	75 mOhm
Lead Spacing	0.197 in
Lifetime	7000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Polarization	Polar
Ratings	AEC-Q200
Ripple Current	1.18 A
Size / Dimension Diameter	0.394 in
Tolerance	20 %
Voltage - Rated	50 V
