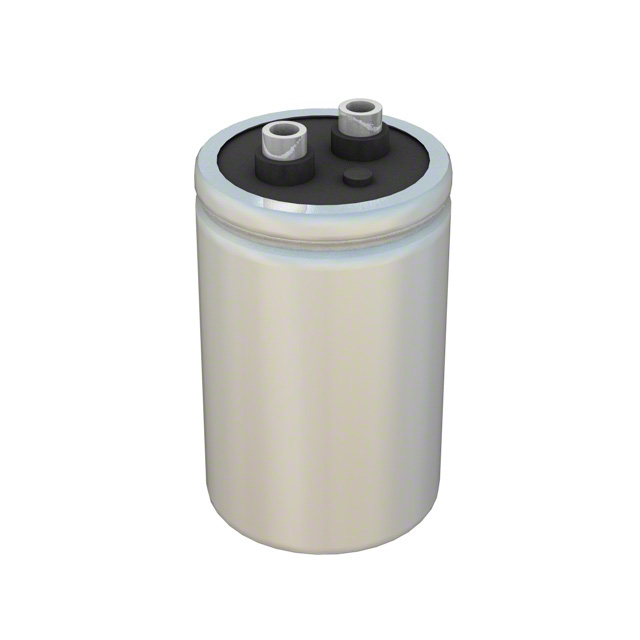

CG252U016R2C
ActiveCornell Dubilier Knowles
CAP ALUM 2500UF 16V SCREW CHAS M
CG252U016R2C
ActiveCornell Dubilier Knowles
CAP ALUM 2500UF 16V SCREW CHAS M
Description
General part information
CG252U016R2C
2500 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 47mOhm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CG252U016R2C |
|---|---|
| Applications | General Purpose |
| Capacitance | 2500 µF |
| ESR (Equivalent Series Resistance) | 47 mOhm |
| Height - Seated (Max) | 2.125 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 4.485 A, 3.9 A |
| Size / Dimension Diameter | 1.375 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 16 V |
