5775AT43A100001E
ObsoleteJohanson Technology Inc.

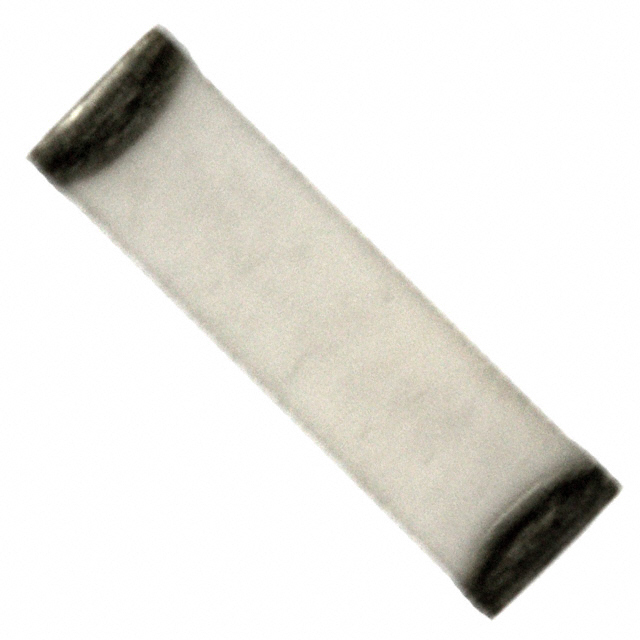

RF ANT 5.8GHZ CHIP SOLDER SMD
5775AT43A100001E
ObsoleteJohanson Technology Inc.
RF ANT 5.8GHZ CHIP SOLDER SMD
Description
General part information
5775AT43A100001E
RF ANTENNA Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 5775AT43A100001E |
|---|---|
| Antenna Type | Chip |
| Frequency (Center/Band) | 5.8 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5.825 GHz |
| Frequency Range (Min) | 5.725 GHz |
| Gain | 3.9 dBi |
| Height (Max) | 0.047 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max | 3 VA |
| Return Loss | -9.5 dB |
| Termination | Solder |
