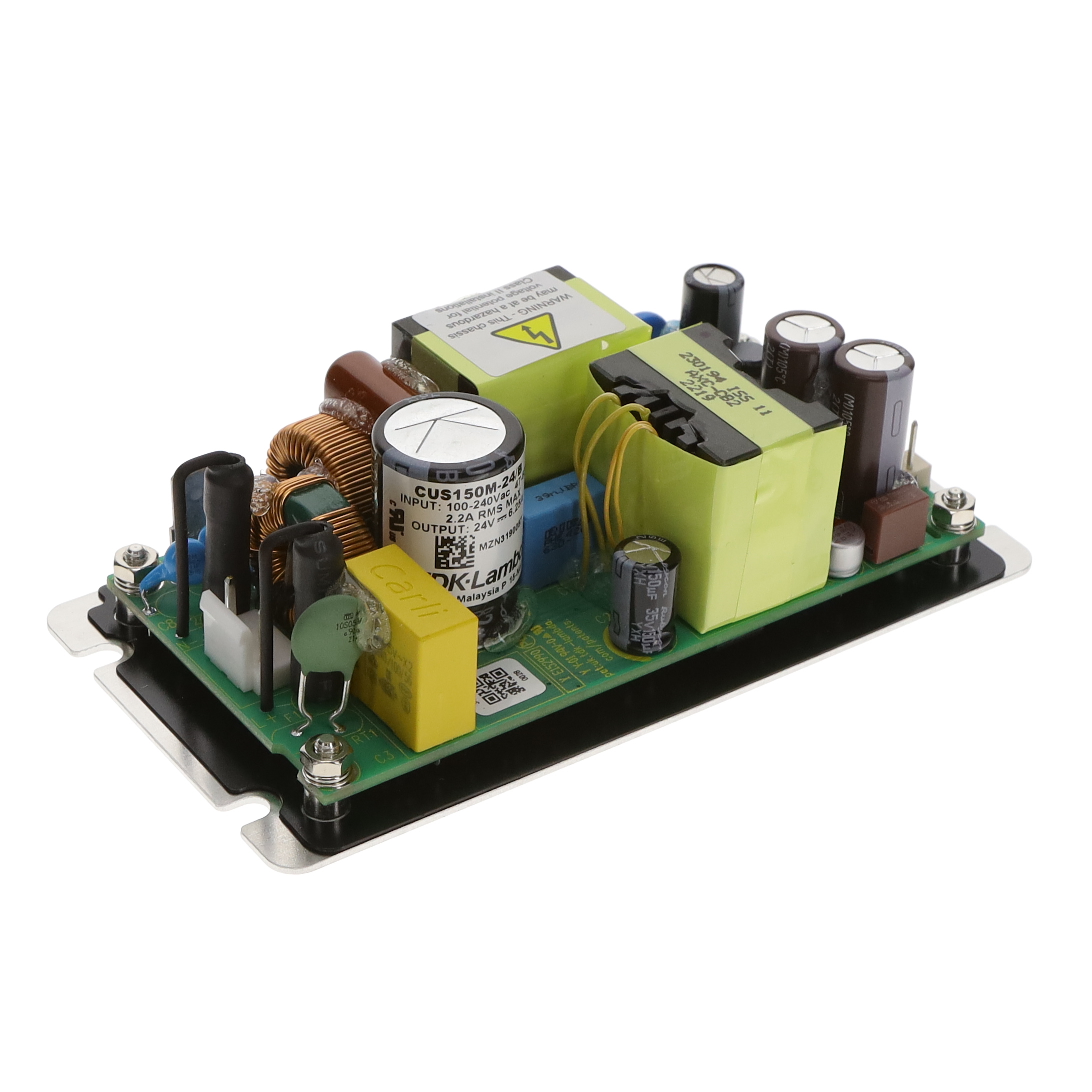

CUS150M-24/B
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 150W, 120 W, 85V AC TO 264V AC, FIXED
Deep-Dive with AI
Search across all available documentation for this part.
CUS150M-24/B
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 150W, 120 W, 85V AC TO 264V AC, FIXED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CUS150M-24/B |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output 1 | 5 A |
| Efficiency | 94 % |
| Features | Standby Output, Baseplate, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 150 W, 120 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 31.5 mm |
| Size / Dimension [z] | 1.24 " |
| Type | Open Frame |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CUS150M-24/B
Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
