009276008021006
ActiveKYOCERA AVX

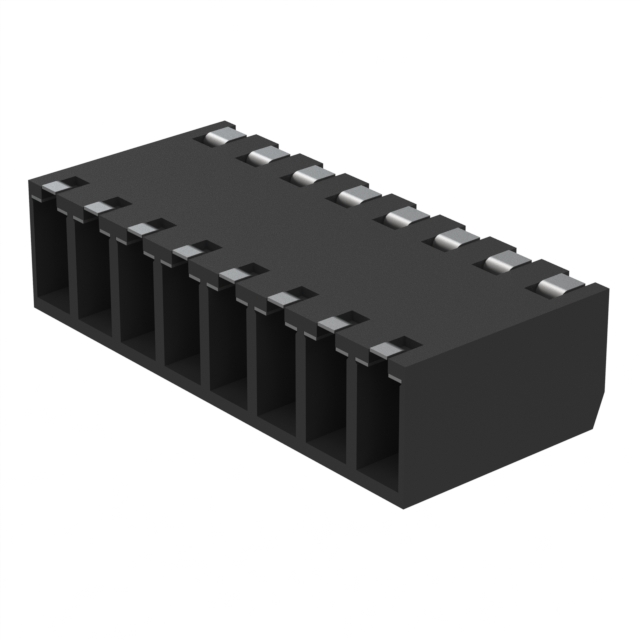

TERM BLK 8POS SIDE ENT 2.5MM SMD
009276008021006
ActiveKYOCERA AVX
TERM BLK 8POS SIDE ENT 2.5MM SMD
Description
General part information
009276008021006
8 Position Wire to Board Terminal Block Horizontal with Board 0.098" (2.50mm) Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 009276008021006 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Current | 6 A |
| Housing Material | Nylon 4/6, Glass Filled, PA46, Polyamide |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.098 in |
| Plating | Tin Plated |
| Positions Per Level | 8 |
| Voltage | 250 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
