1-1740533-4
ActiveTE Connectivity AMP Connectors

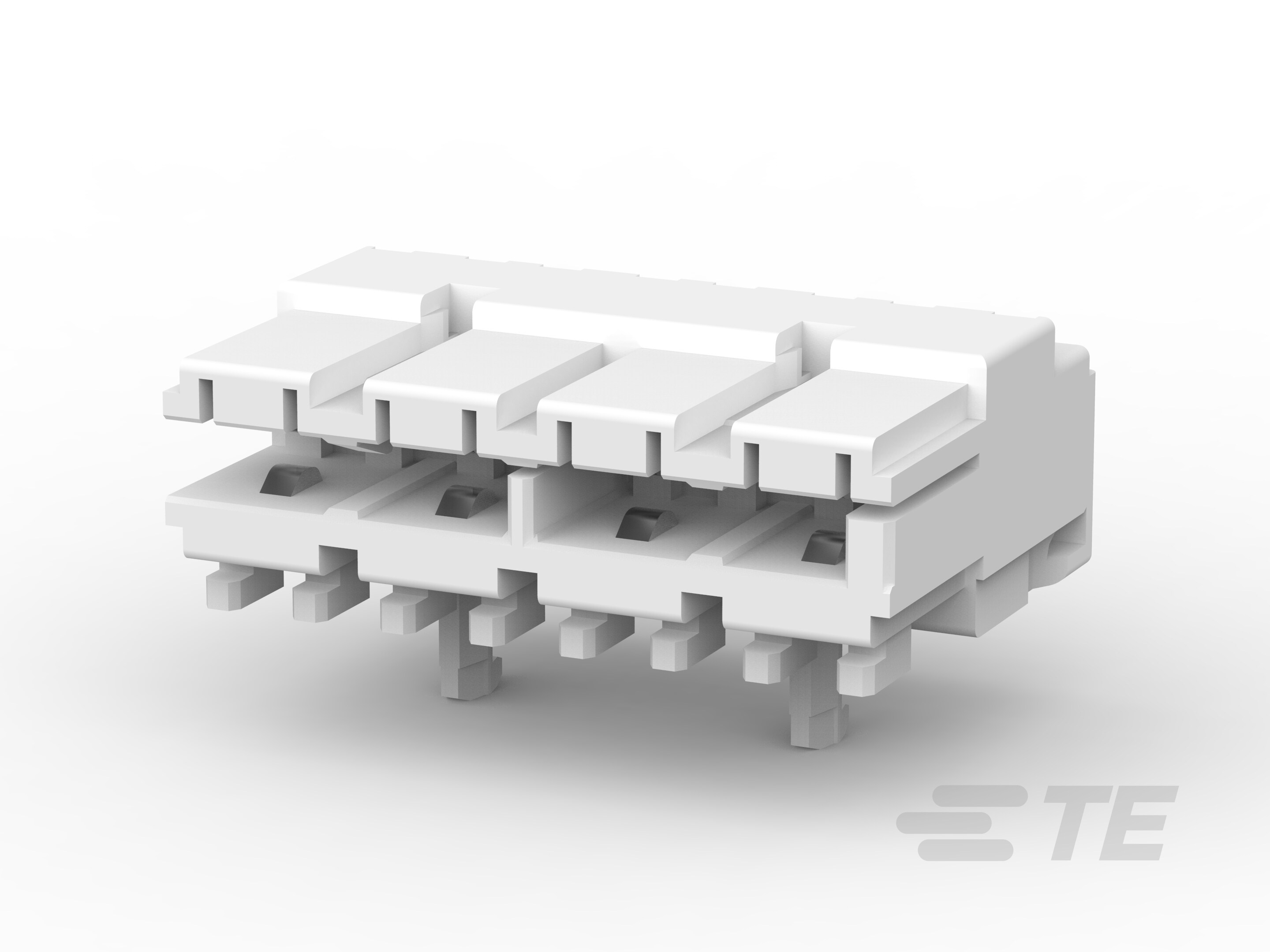

AMP DUOPLUG POW CONN. 4POS W.PCB LOCKING
1-1740533-4
ActiveTE Connectivity AMP Connectors
AMP DUOPLUG POW CONN. 4POS W.PCB LOCKING
Description
General part information
1-1740533-4
Wire-to-Board, 4 Position, 5 mm [.197 in] Centerline, Insulation Displacement (IDC), 1 Row, Natural, PA 6 GF, Standard Edge Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1740533-4 |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Blade Socket |
| Fastening Type | Locking Ramp |
| Features | Mates to PCB |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch | 0.197 in |
| Wire Type | Discrete |
