IN-P23CTKUW.70.30
ActiveInolux Corporation
LED WARM WHT 3000K 1411
IN-P23CTKUW.70.30
ActiveInolux Corporation
LED WARM WHT 3000K 1411
Description
General part information
IN-P23CTKUW.70.30

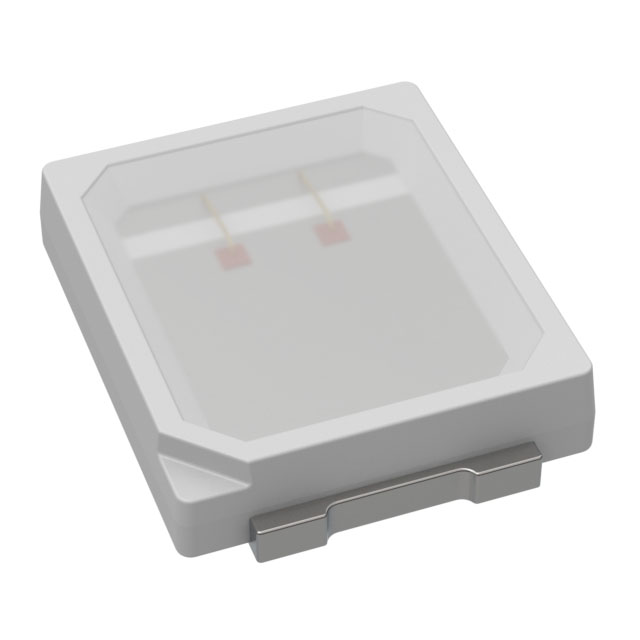

LED Lighting - White, Warm 3000K 3.2V 150mA 120° 1411 (3528 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | IN-P23CTKUW.70.30 |
|---|---|
| CCT (K) | 3000 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 70 |
| Current - Max | 150 mA |
| Current - Test | 150 mA |
| Flux (Maximum) | 60 lm |
| Flux (Minimum) | 50 lm |
| Flux (Nominal) | 55 lm |
| Height - Seated (Max) | 0.037 in |
| Lumens/Watt | 115 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Package Diameter | 3528 mm |
| Package Name | 1411 |
| Size / Dimension Length | 0.138 in |
| Size / Dimension Width | 0.11 in |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
