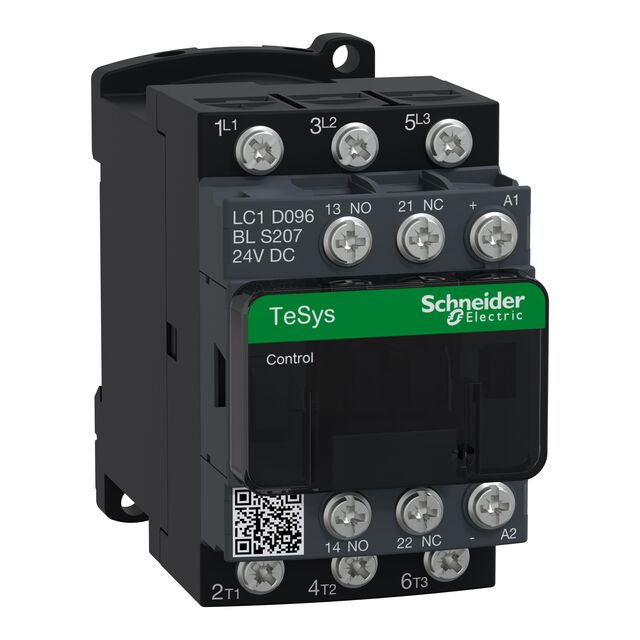

LC1D096BLS207
ActiveSCHNEIDER ELECTRIC
CONTACTOR: 3-POLE; NO X3; AUXILIARY CONTACTS: NC + NO; 24VDC; 9A
LC1D096BLS207
ActiveSCHNEIDER ELECTRIC
CONTACTOR: 3-POLE; NO X3; AUXILIARY CONTACTS: NC + NO; 24VDC; 9A
Description
General part information
LC1D096BLS207
CONTACTOR: 3-POLE; NO X3; AUXILIARY CONTACTS: NC + NO; 24VDC; 9A
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D096BLS207 |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 9 A |
| Features | Suppressor, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 V |
| Operate Time | 75 ms |
| Pin Count | 3 pins |
| Release Time | 32 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Box Lug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
