MMB02070C3902FB200
ActiveVishay Dale

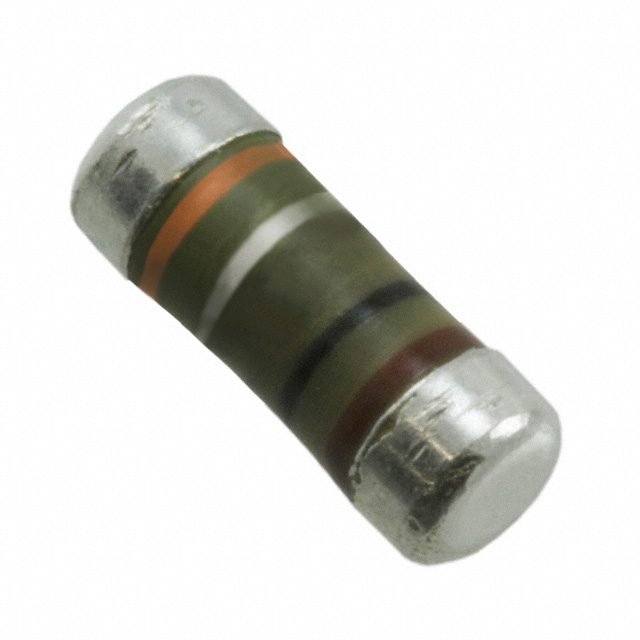

SURFACE MOUNT MELF RESISTOR, MMB 0207 SERIES, 39 KOHM, 400 MW, 1%, METAL FILM ROHS COMPLIANT: YES
MMB02070C3902FB200
ActiveVishay Dale
SURFACE MOUNT MELF RESISTOR, MMB 0207 SERIES, 39 KOHM, 400 MW, 1%, METAL FILM ROHS COMPLIANT: YES
Description
General part information
MMB02070C3902FB200
SURFACE MOUNT MELF RESISTOR, MMB 0207 SERIES, 39 KOHM, 400 MW, 1%, METAL FILM ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | MMB02070C3902FB200 |
|---|---|
| Composition | Thin Film |
| Features | Automotive AEC-Q200, Anti-Sulfur |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0207, MELF |
| Package Name | 0207 |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 39 kOhm |
| Size / Dimension Diameter | 0.087 in |
| Size / Dimension Length | 0.228 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
