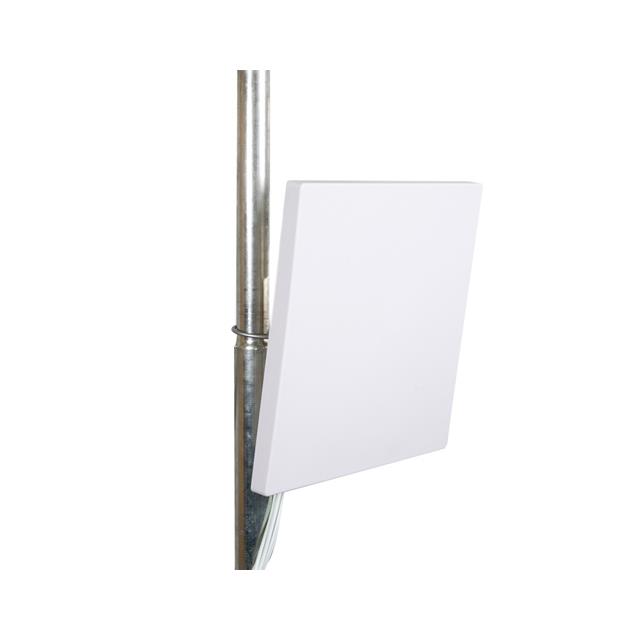

HG2458-06DP-8RSP
ActivePasternack
WIFI 6, 2400-2500/5150-5850 MHZ
HG2458-06DP-8RSP
ActivePasternack
WIFI 6, 2400-2500/5150-5850 MHZ
Description
General part information
HG2458-06DP-8RSP
2.45GHz, 5.5GHz 802.11b/g/n/ac/ax, Bluetooth, IoT, Wi-Fi, Zigbee™ Flat Panel RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 6dBi, 6dBi RP-SMA Male (8) Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2458-06DP-8RSP |
|---|---|
| Antenna Type | Flat Panel |
| Applications | Zigbee™, IoT, Bluetooth, 802.11b/g/n/ac/ax, Wi-Fi |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Band) | 5.5 GHz |
| Frequency (Center) | 2.45 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Gain | 6 dBi |
| Height (Max) | 1 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 2 |
| Power - Max | 50 VA |
| RF Family/Standard | 802.15.4, Cellular, Bluetooth |
| Termination Count | 8 |
| Termination Count (SMA Male) | 8 |
| Termination Type | RP-SMA Male |
| VSWR | 2 |
