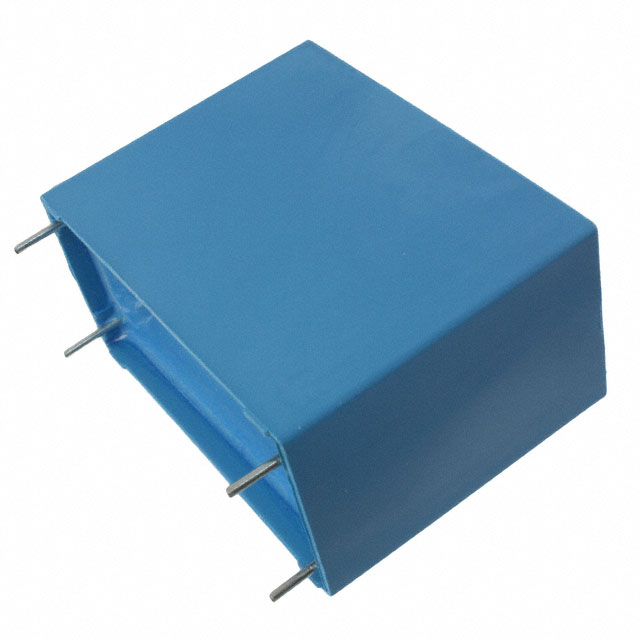

Specification	B32678G3356K000

Applications	DC Filtering, DC Link
Capacitance	35 µF
Dielectric Material	Metallized, Polypropylene (PP)
Features	Long Life
Height - Seated (Max)	1.772 in
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Size / Dimension Length	2.264 in
Size / Dimension Width	1.181 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - DC	300 V
