31AC0412A-IP
ActiveIdeal Power Ltd.

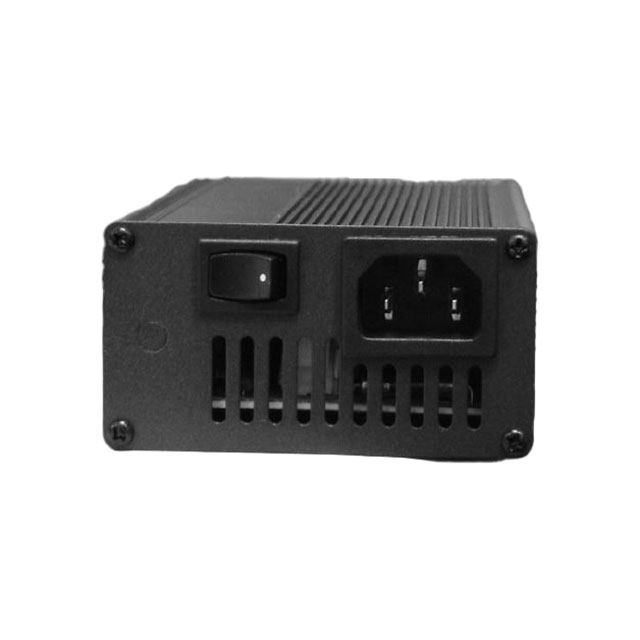

BATT CHARGER DESKTOP 14.6V 4A
31AC0412A-IP
ActiveIdeal Power Ltd.
BATT CHARGER DESKTOP 14.6V 4A
Description
General part information
31AC0412A-IP
Desktop Battery Charger 14.6V 4A 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | 31AC0412A-IP |
|---|---|
| Approval Agency | CE |
| Battery Cell Voltage | 12 V |
| Battery Chemistry | Lead Acid |
| Charge Current - Max | 4 A |
| Mounting Type | Desktop |
| Operating Temperature (Max) | 45 °C |
| Operating Temperature (Min) | 0 °C |
| Power - Max | 59 W |
| Size / Dimension Height | 1.85 in |
| Size / Dimension Length | 7.09 in |
| Size / Dimension Width | 3.46 in |
| Termination Style | Alligator Clips |
| Type | Desktop |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Nominal | 14.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
