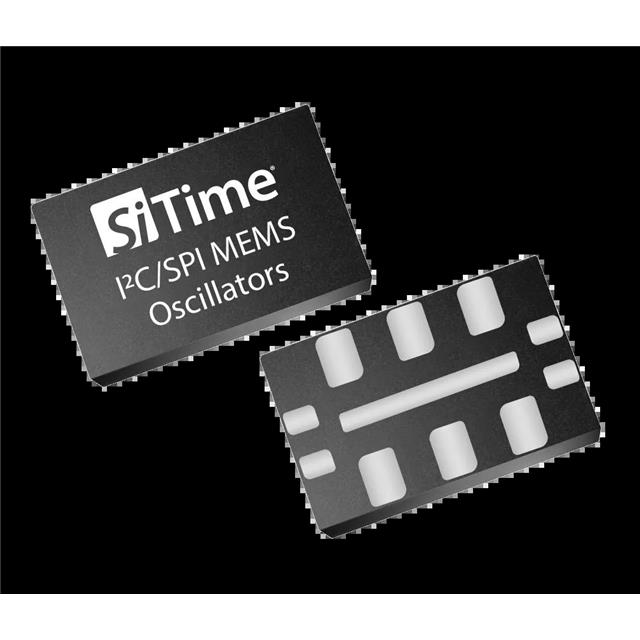

SIT3521AI-2C125-GX125.00000
ActiveSiTime
MEMS OSC I2C/SPI 125.00000 MHZ L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SIT3521AI-2C125-GX125.00000
ActiveSiTime
MEMS OSC I2C/SPI 125.00000 MHZ L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SIT3521AI-2C125-GX125.00000 |
|---|---|
| Absolute Pull Range (APR) | 385 ppm |
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) [Max] | 61 mA |
| Current - Supply (Max) [Max] | 80 mA |
| Frequency | 125 MHz |
| Frequency Stability | 20 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 10-VQFN Exposed Pad |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | DCXO |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 18.70 | |
Description
General part information
SIT3521AI-2C125-GX125.00000
125 MHz DCXO LVDS Oscillator 2.5V Enable/Disable 10-VQFN Exposed Pad
