SCB63C-221
ObsoleteSignal Transformer
FIXED IND 220UH 410MA 1.8OHM SMD
SCB63C-221
ObsoleteSignal Transformer
FIXED IND 220UH 410MA 1.8OHM SMD
Description
General part information
SCB63C-221

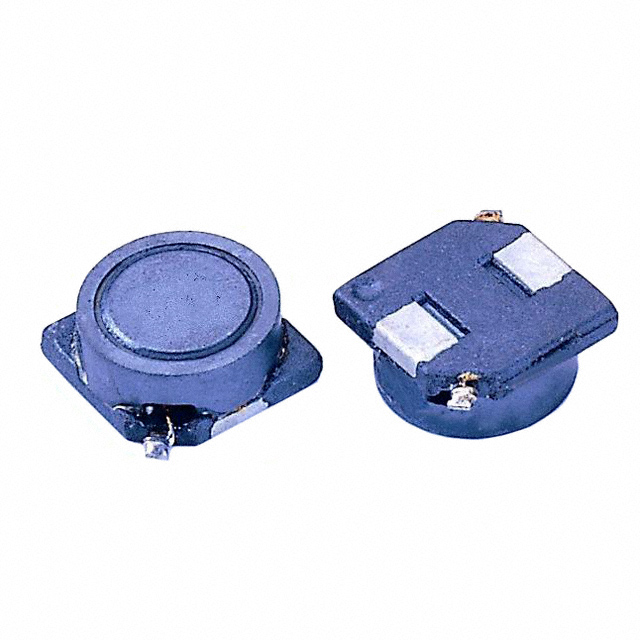

220 µH Shielded Inductor 410 mA 1.8Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCB63C-221 |
|---|---|
| Current - Saturation (Isat) | 0.13 mA |
| Current Rating | 410 mA |
| DC Resistance (DCR) (Max) | 1.8 Ohm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 220 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.244 in |
| Size / Dimension Width | 0.244 in |
| Tolerance | 20 % |
