CPC1822N
ObsoleteLITTELFUSE
PHOTOVOLTAIC SOLAR CELL 4.5V
CPC1822N
ObsoleteLITTELFUSE
PHOTOVOLTAIC SOLAR CELL 4.5V
Description
General part information
CPC1822N
Photovoltaic Solar Cell 4.5 V
Technical Specifications
Parameters and characteristics for this part
| Specification | CPC1822N |
|---|---|
| Current - Short Circuit (Isc) | 50 µA |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Length | 0.154 in |

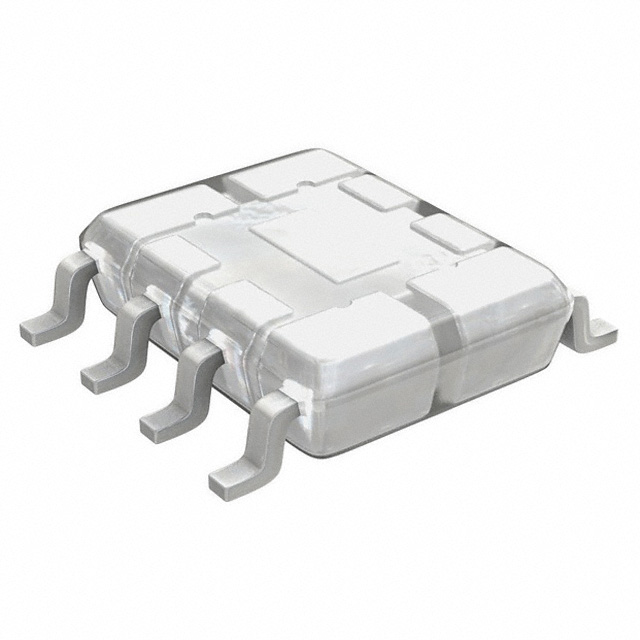

| Package Name | 8-SOIC |
| Package Width | 3.9 mm |
| Size / Dimension Height | 0.061 in |
| Size / Dimension Length | 0.193 in |
| Size / Dimension Width | 0.154 in |
| Type | Photovoltaic |
| Voltage - Open Circuit | 4.5 V |
