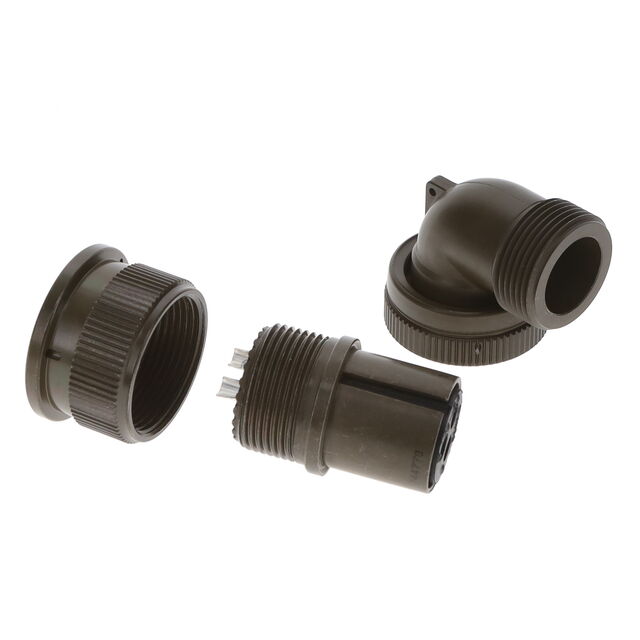

MS3108A16-10S
ActiveAmphenol Aerospace Operations
MIL-5015 MS/AC THREADED PLUG
MS3108A16-10S
ActiveAmphenol Aerospace Operations
MIL-5015 MS/AC THREADED PLUG
Description
General part information
MS3108A16 Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3108A16-10S |
|---|---|
| Applications | Marine, Military |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 23 A |
| Fastening Type | Threaded |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate, Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert Length | 16 mm |
| Shell Size - Insert Width | 10 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
