P007-003-15D
ActiveEaton Tripp Lite
DESKTOP COMPUTER POWER CORD, RIG
P007-003-15D
ActiveEaton Tripp Lite
DESKTOP COMPUTER POWER CORD, RIG
Description
General part information
P007-003-15D

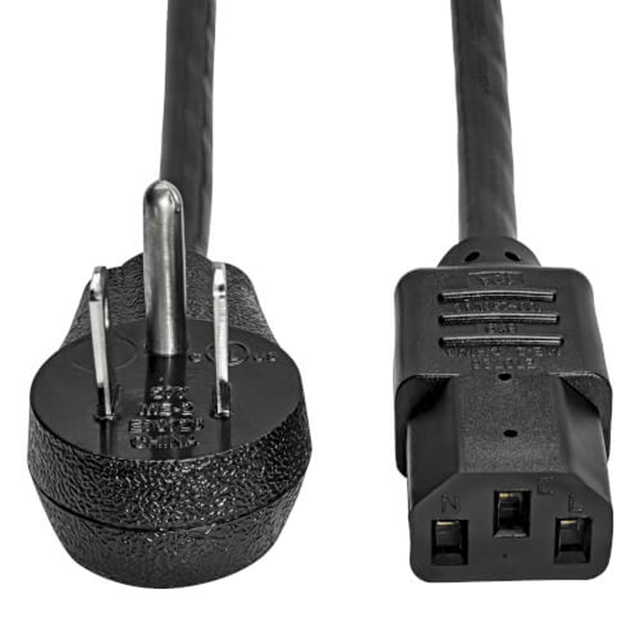

3.00' (914.4mm) Power Cord Black NEMA 5-15P, Right Angle To IEC 320-C13 SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | P007-003-15D |
|---|---|
| 1st Connector | NEMA 5-15P, Right Angle |
| 2nd Connector | IEC 320-C13 |
| Approval Agency Marking | cUL, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 15 A |
| Length | 3 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 14 AWG |
