31049
Active3M Electronic Specialty

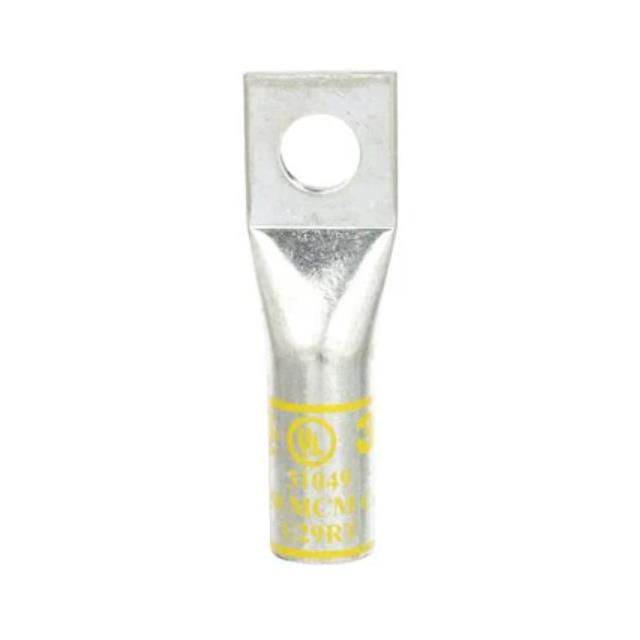

3M(TM) SCOTCHLOK(TM) COPPER ONE HOLE LONG BARREL LUG 31049, UP TO 35 KV, 250 KCMIL, YELLOW
31049
Active3M Electronic Specialty
3M(TM) SCOTCHLOK(TM) COPPER ONE HOLE LONG BARREL LUG 31049, UP TO 35 KV, 250 KCMIL, YELLOW
Description
General part information
31049
Terminal Connector Rectangular Standard 250MCM (kcmil) 1/2 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | 31049 |
|---|---|
| Color | Yellow |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.595 in |
| Diameter - Barrel OD | 0.75 in |
| Insulation | Non-Insulated |
| Length - Overall | 3.382 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.5 Stud |
| Terminal Style | Single Stud Hole |
| Terminal Type | Standard |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 1.11 in |
| Wire Gauge (MCM) | 250 MCM |
