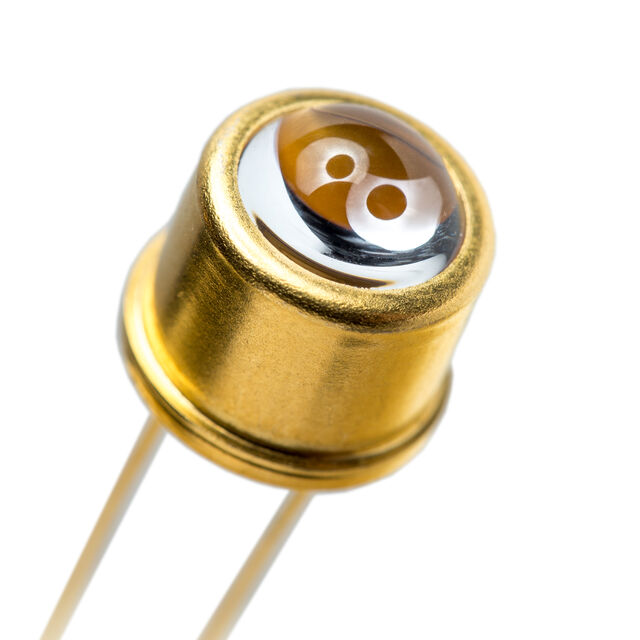

EOLD-460-013 PIN -17 MM
ActiveEPIGAP OSA Photonics
VIS EMITTER 460NM TO 46 DOME LEN
EOLD-460-013 PIN -17 MM
ActiveEPIGAP OSA Photonics
VIS EMITTER 460NM TO 46 DOME LEN
Description
General part information
EOLD-460-013 PIN -17 MM
Visible Emitter 460nm 3.3V 50mA 350mW/sr 20° TO-46-2
Technical Specifications
Parameters and characteristics for this part
| Specification | EOLD-460-013 PIN -17 MM |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | TO-46-2 |
| Radiant Intensity (Ie) Min | 350 mW/sr |
| Radiant Intensity (Ie) Min (Typical) | 0 |
| Type | Visible |
| Viewing Angle | 20 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength | 460 nm |
