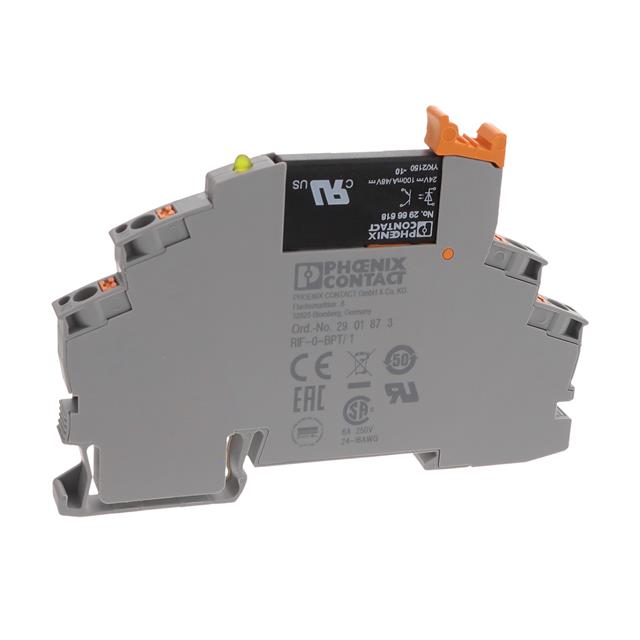

Phoenix Contact

SSR RELAY SPST-NO 100MA 3-48V

Search across all available documentation for this part.

Active

Phoenix Contact

SSR RELAY SPST-NO 100MA 3-48V

Technical Specifications

Parameters and characteristics commom to parts in this series

SSR RELAY SPST-NO 100MA 3-48V

Part	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Termination Style	Output Type	Approval Agency	Load Current	Package / Case	Mounting Type	Voltage - Input
Phoenix Contact 2905294	48 V	3 V	-20 C	60 °C	19.2 V	28.8 V	Spring Terminal	DC	EN, IEC	100 mA	Module	DIN Rail
Phoenix Contact 2905295	253 V	24 V	-25 °C	60 °C			Plug In	AC	DNV, EAC	0.75 A		DIN Rail	24 V
Phoenix Contact 2905293	33 V	3 V	-25 °C	60 °C			Spring Terminal	DC	DNV, EAC	3 A		DIN Rail	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module
