LCCA30318-FT5
ActivePasternack
SMA MALE TO 7/16 DIN MALE RIGHT
LCCA30318-FT5
ActivePasternack
SMA MALE TO 7/16 DIN MALE RIGHT
Description
General part information
LCCA30318-FT5

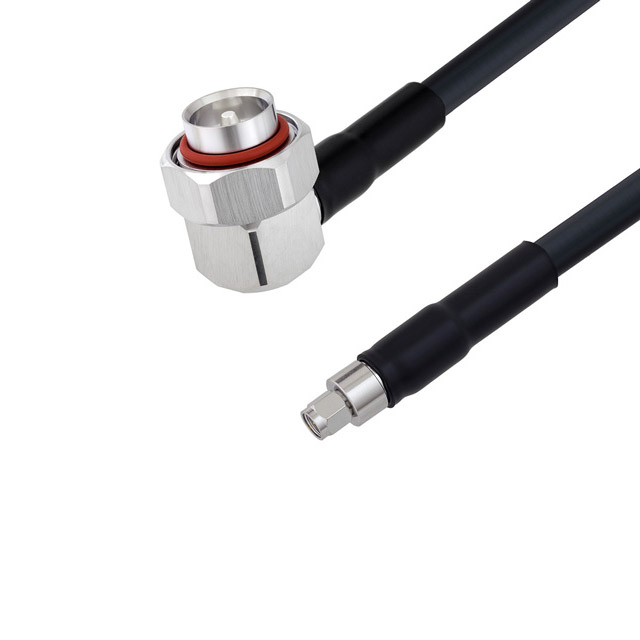

Cable Assembly Coaxial 7/16 DIN to SMA LMR 400 DB 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30318-FT5 |
|---|---|
| 1st Connector | 7/16 Plug, Right Angle, Right Angle, 7/16 Plug |
| 1st Connector - Orientation | Right Angle |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR DB |
| Cable Type Size | 400 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to SMA |
