Description
General part information
AXA-FMEPFMEP

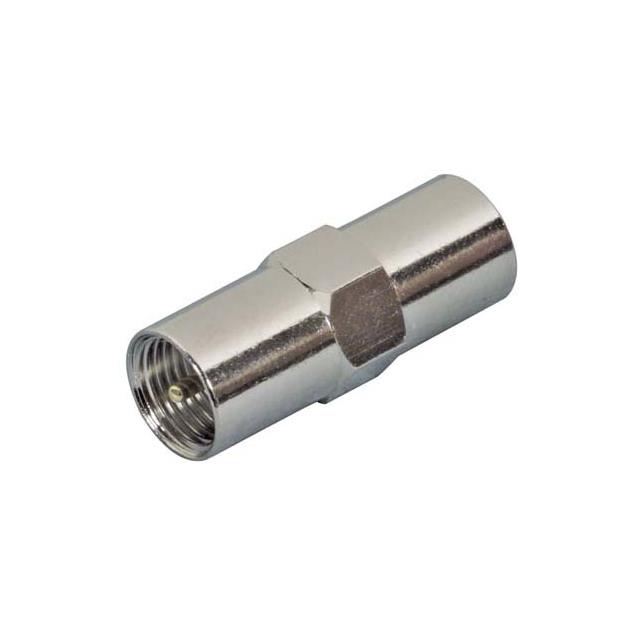

Adapter Coaxial Connector FME Plug, Male Pin To FME Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AXA-FMEPFMEP |
|---|---|
| Adapter Series | FME to FME |
| Adapter Type | Plug to Plug |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Male Pin, FME Plug |
| Convert To (Adapter End) | FME Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 200 MHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
