40FR1-3
ActivePepperl+Fuchs, Inc.
REED SWITCH, 40 SERIES, PANEL MOUNT, 19.8 MM, SPST-NO, 10 W, 100 VDC, 0.75 A
40FR1-3
ActivePepperl+Fuchs, Inc.
REED SWITCH, 40 SERIES, PANEL MOUNT, 19.8 MM, SPST-NO, 10 W, 100 VDC, 0.75 A
Description
General part information

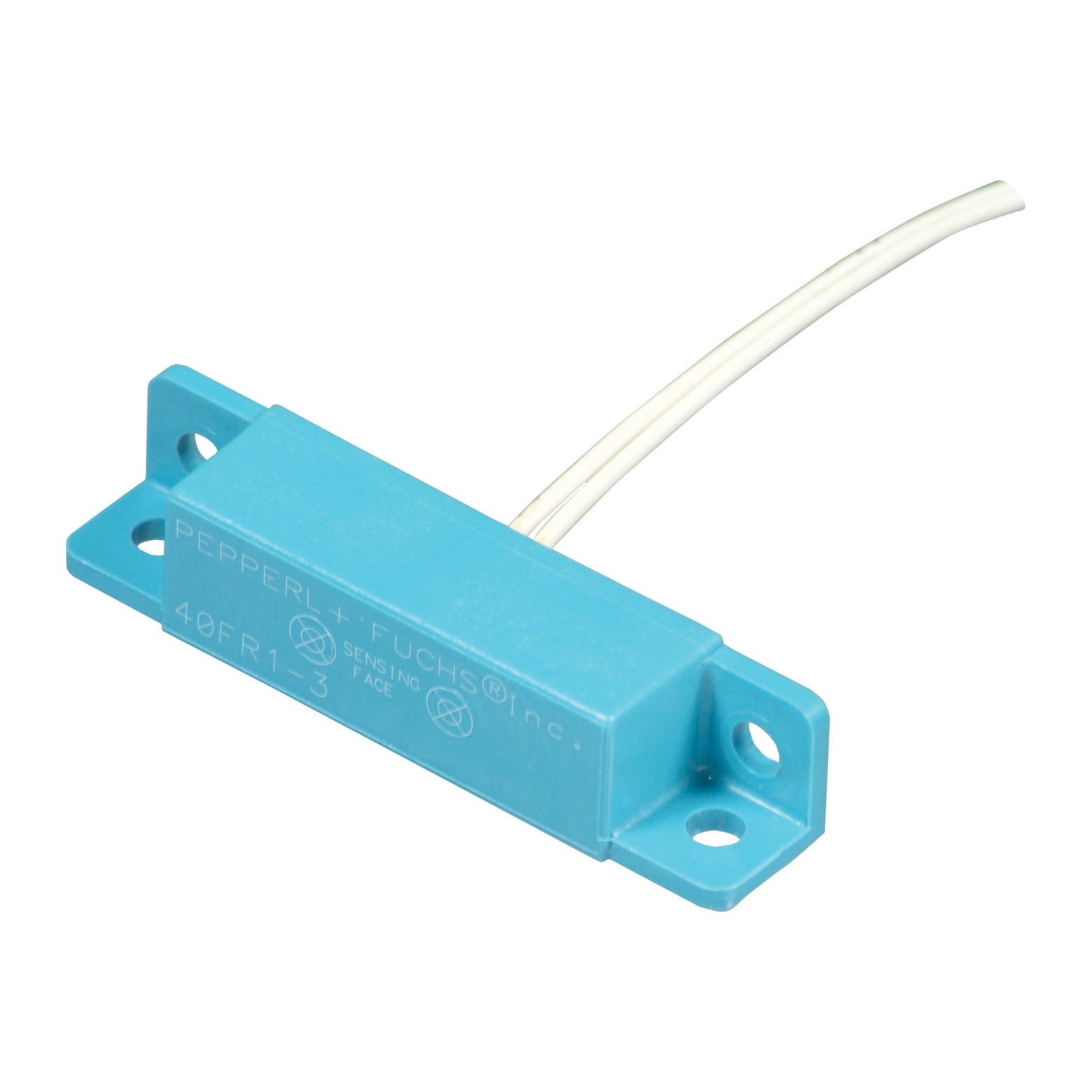

40FR1-3
The 40FR1-3 is a Proximity Magnetic Field Sensor offers non-flush installation, reed contact normally open switching element function and AC/DC compatibility. It is made of polycarbonate housing and sensing face.
Technical Specifications
Parameters and characteristics for this part
| Specification | 40FR1-3 |
|---|---|
| Actuator Material | Magnet |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | NO |
| Package / Case | Module |
| Termination Style | Cable |
| Type | Reed Switch |
| Voltage - Supply | 115VAC, 100VDC |
| Voltage - Supply | 115 VAC, 100 VAC |
