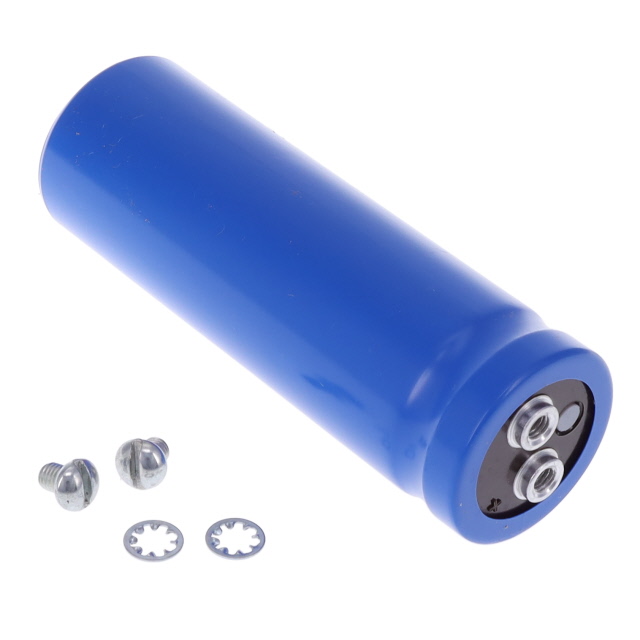

36DX872G040AC2A
ObsoleteVishay Dale
CAP ALUM 8700UF 40V SCREW CHAS M
36DX872G040AC2A
ObsoleteVishay Dale
CAP ALUM 8700UF 40V SCREW CHAS M
Description
General part information
36DX872G040AC2A
8700 µF 40 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 36DX872G040AC2A |
|---|---|
| Applications | General Purpose |
| Capacitance | 8700 µF |
| Height - Seated (Max) | 4.252 in |
| Lead Spacing | 0.5 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 1.453 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 40 V |
