HRF-SW1030-FL-TR
ObsoleteHoneywell Aerospace
IC RF SWITCH SP6T 2.5GHZ 24VQFN
HRF-SW1030-FL-TR
ObsoleteHoneywell Aerospace
IC RF SWITCH SP6T 2.5GHZ 24VQFN
Description
General part information
HRF-SW1030-FL-TR
RF Switch IC Cellular, PCS, GSM, WLL SP6T 2.5 GHz 50Ohm 24-VQFN-EP (4x4)
Technical Specifications
Parameters and characteristics for this part
| Specification | HRF-SW1030-FL-TR |
|---|---|
| Circuit | SP6T |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 0 Hz |
| IIP3 | 35 dBm |
| Impedance | 50 Ohm |
| Insertion Loss | 2.4 dB |
| Isolation | 40 dB |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| P1dB | 25 dBm |

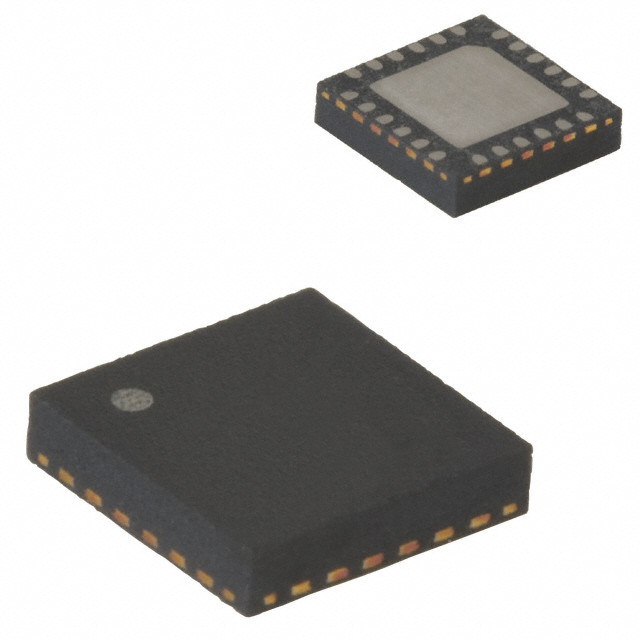

| Package / Case | 24-VQFN Exposed Pad |
| Package Length | 4 mm |
| Package Name | 24-VQFN-EP |
| Package Width | 4 mm |
| RF Type | WLL, GSM, PCS, Cellular |
| Test Frequency | 3 GHz, 2.5 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 3.3 V |
