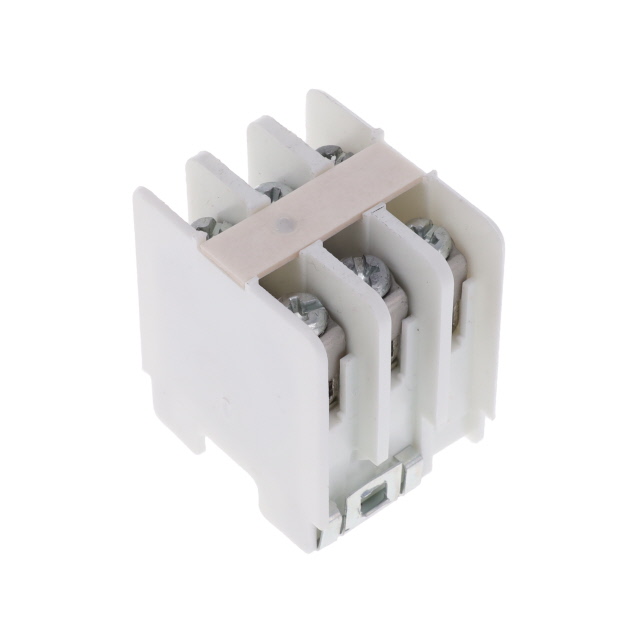

3PSWTC
ObsoleteCurtis Industries
CONN BARRIER STRIP 3CIRC 0.375"
3PSWTC
ObsoleteCurtis Industries
CONN BARRIER STRIP 3CIRC 0.375"
Description
General part information
3PSWTC
3 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
Technical Specifications
Parameters and characteristics for this part
| Specification | 3PSWTC |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Current Rating | 50 A |
| Features | Marking Strip |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Track, DIN Rail, Channel |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Operating Temperature | 125 °C |
| Pitch | 0.375 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 8 AWG |
