Specification	D38999/26ZA98SA

Applications	Military, Aviation, Marine
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating	7.5 A
Fastening Type	Threaded
Features	Coupling Nut, Self Locking
Ingress Protection	Environment Resistant
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	175 °C, 200 °C
Operating Temperature (Min)	-65 °C
Orientation	A
Primary Material	Metal
Shell Finish	Black Zinc Nickel
Shell Material	Aluminum
Shell Size (MIL)	A
Shielding	Unshielded, Shielded
Termination	Crimp
Voltage Rating	500 V

D38999/26ZA Series

Part	Number of Positions	Contact Shape	Features	Mounting Type	Contact Type	Insert Material	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Fastening Type	Shell Finish	Orientation	Contact Size	Note	Shell Size (MIL)	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Housing Color	Type	Primary Material	Current Rating	Contact Material	Contact Finish - Mating	Qualification	Color	Contact Finish Thickness - Mating	Termination	Applications	Grade	Ingress Protection	Voltage Rating (AC)	Voltage Rating (DC)	Material Flammability Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
Amphenol Aerospace Operations D38999/26ZA98BB	3	Circular	Coupling Nut	Free Hanging (In-Line)	Crimp	Thermoplastic	Plug Housing	Dust Tight Waterproof	IP67	Shielded	Threaded	Zinc Nickel	B	20	Contacts Not Included	A	200 °C	-65 °C	Aluminum	Black	For Female Sockets
Amphenol Aerospace Operations D38999/26ZA7SAL				Free Hanging (In-Line)	Crimp		Receptacle Housing				Threaded		A			A					For Female Sockets	Metal
Amphenol Aerospace Operations D38999/26ZA35SA
Amphenol Aerospace Operations D38999/26ZA98PAL
Amphenol Aerospace Operations D38999/26ZA98BN
Amphenol Aerospace Operations D38999/26ZA35SN	6		Coupling Nut	Free Hanging (In-Line)		Thermoplastic	Female Sockets Plug	Dust Tight Waterproof	IP67	Shielded	Threaded	Black Zinc Nickel	N (Normal)			A	200 °C	-65 °C	Aluminum			Metal	5 A	Copper Alloy	Gold	MIL-DTL-38999 Series III	Black	50 µin	Crimp	Aviation Marine Military	Military
Amphenol Aerospace Operations D38999/26ZA35PAL
Amphenol Aerospace Operations D38999/26ZA35PN	6		Coupling Nut	Free Hanging (In-Line)		Thermoplastic	Male Pins Plug	Dust Tight Waterproof	IP67	Shielded	Threaded	Black Zinc Nickel	N (Normal)			A	175 °C 200 °C	-65 °C	Aluminum			Metal	5 A	Copper Alloy	Gold	MIL-DTL-38999 Series III	Black	50 µin	Crimp	Aerospace Aviation Marine Military	Military	Environment Resistant	400 VAC	550 VDC	UL94 V-0	35	9

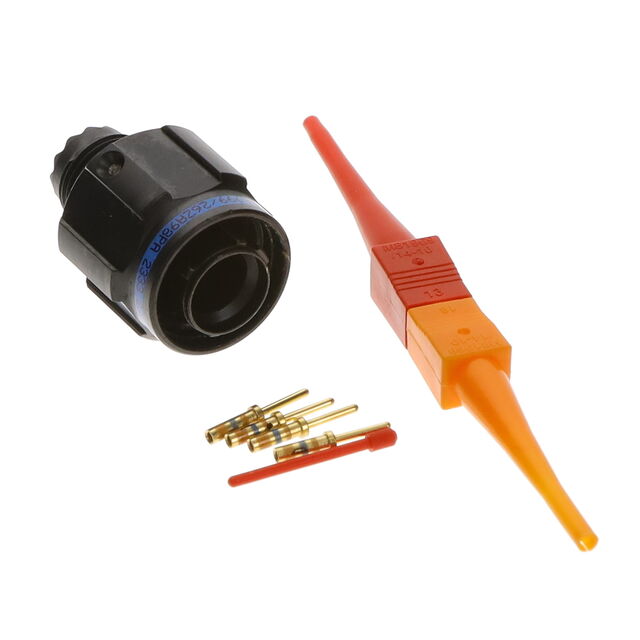

Amphenol Aerospace Operations D38999/26ZA98PA	3		Coupling Nut	Free Hanging (In-Line)		Thermoplastic	Male Pins Plug	Dust Tight Waterproof	IP67	Shielded	Threaded	Black Zinc Nickel	A			A	200 °C	-65 °C	Aluminum			Metal	7.5 A	Copper Alloy	Gold		Black	50 µin	Crimp	Aviation Marine Military
Amphenol Aerospace Operations D38999/26ZA98PAL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

D38999/26ZA98SA | Datasheet
