1-1452568-3
ActiveTE Connectivity AMP Connectors

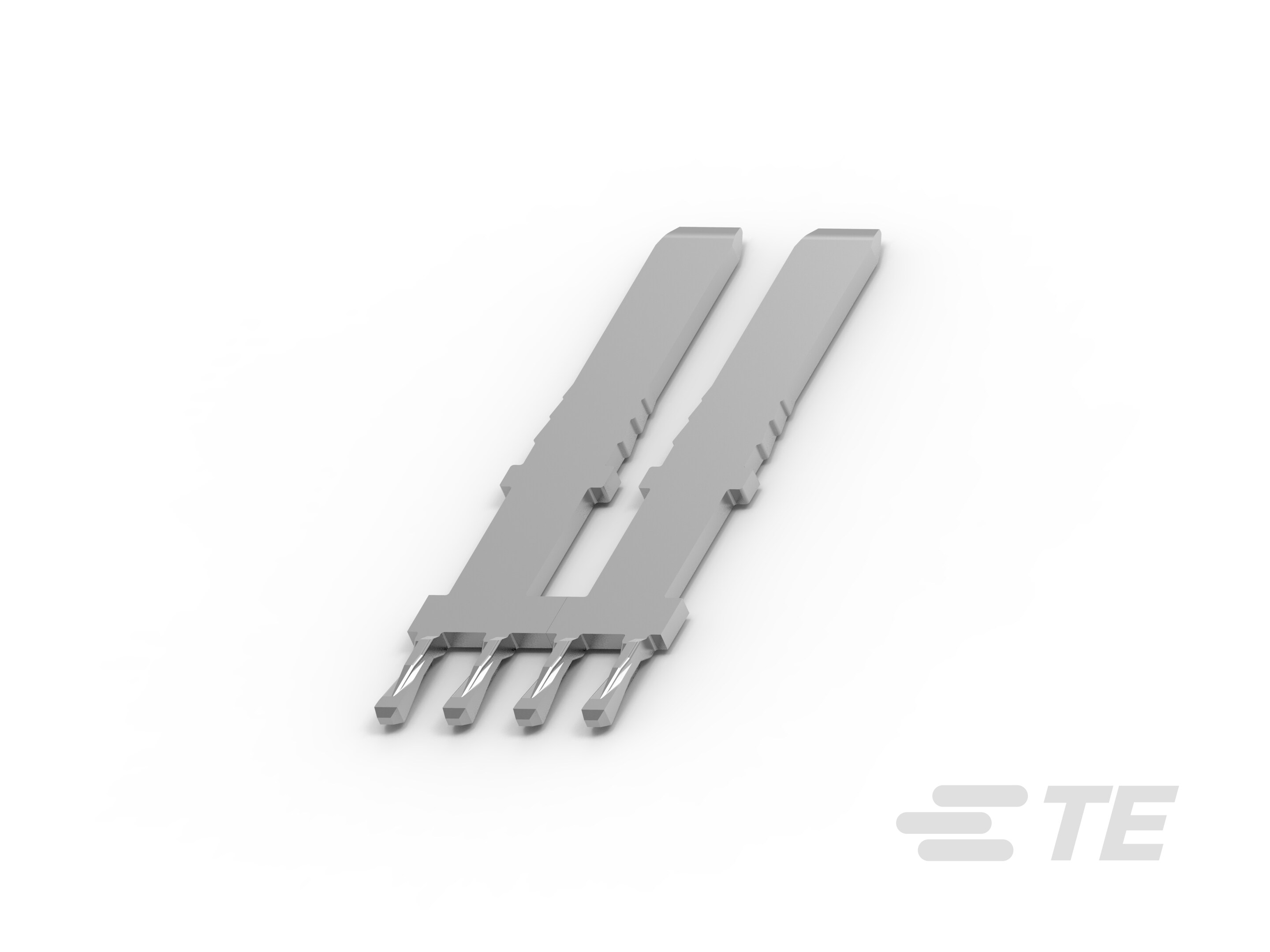

ACTION PIN 2,8X0,6
1-1452568-3
ActiveTE Connectivity AMP Connectors
ACTION PIN 2,8X0,6
Description
General part information
1-1452568-3
Tab Terminal, 2.8 mm [.11 in] Tab Width, Tin (Sn), .6 mm [.024 in] Tab Thickness, 15 mm [.591 in] Tab Length, Press Fit Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1452568-3 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Insulation | Non-Insulated |
| Length - Overall | 0.591 in |
| Mounting Type | Through Hole |
| Terminal Style | Pin Retention |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
