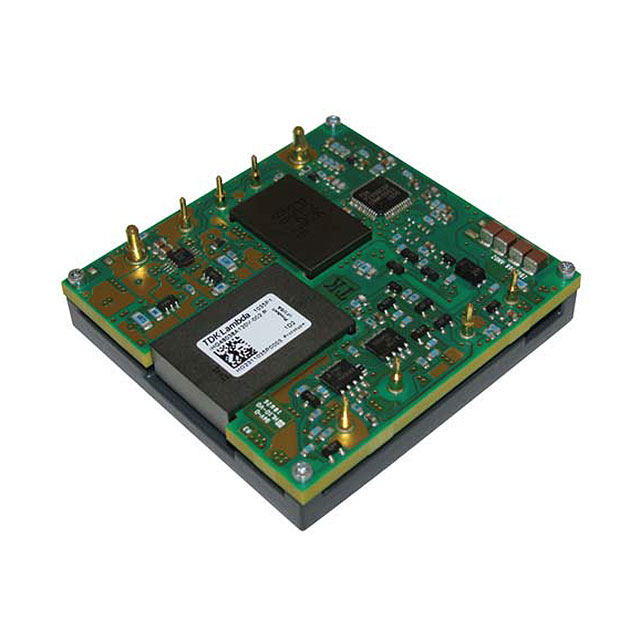

IHG48038A120V-109-R
ObsoleteTDK Corporation
DC DC CONVERTER 12V 456W
IHG48038A120V-109-R
ObsoleteTDK Corporation
DC DC CONVERTER 12V 456W
Description
General part information
IHG48038A120V-109-R
Isolated Module DC DC Converter 1 Output 12V 38A 36V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | IHG48038A120V-109-R |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 38 A |
| Efficiency | 92.5 % |
| Features | OTP, OCP, Remote On/Off, OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 116 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1/2 Brick, 9-DIP Module |
| Power (Watts) | 456 W |
| Size / Dimension Height | 0.52 in |
| Size / Dimension Length | 2.36 in |
| Size / Dimension Width | 2.24 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 12 V |
