KMF1.1293.11

Active

SCHURTER Inc.

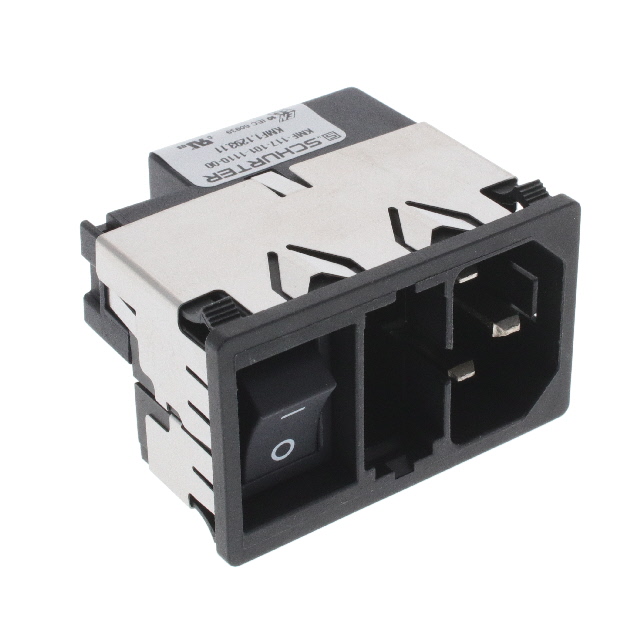

IEC POWER CONNECTOR, C14 INLET, 10A, 250VAC, QUICK CONNECT, PANEL MOUNT

Search across all available documentation for this part.

Active

SCHURTER Inc.

IEC POWER CONNECTOR, C14 INLET, 10A, 250VAC, QUICK CONNECT, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	KMF1.1293.11

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.8 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

IEC POWER CONNECTOR, C14 INLET, 10A, 250VAC, QUICK CONNECT, PANEL MOUNT

Part	Current Rating - Filter	Ingress Protection	Connector Type	Accomodates a Fuse	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Switch Features	Filter Type	Voltage Rating - Appliance Inlet	Connector Style	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Approval Agency	Features	Termination	Termination	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating
SCHURTER Inc. KMF1.1293.11	10 A	IP40	Receptacle, Male Blades - Module		Drawer Sold Separate	10 A	Switch On-Off	Filtered (EMI, RFI) - Commercial, Medical	250 VAC	IEC 320-C14	2.5 mm	1 mm	0.098 in	0.039 in	CCC, cULus, ENEC	Shielded	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In	47.8 mm	28.8 mm	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
