6FB53-73/TABS

Active

Carling Technologies

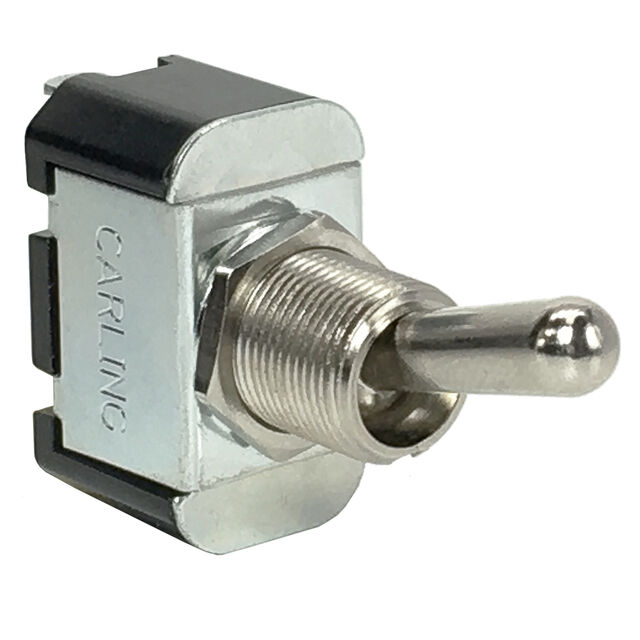

TOGGLE SWITCH, UNSEALED, ON-NONE-(ON), SPDT, NON ILLUMINATED, F SERIES, PANEL MOUNT, 15 A

Search across all available documentation for this part.

Active

Carling Technologies

TOGGLE SWITCH, UNSEALED, ON-NONE-(ON), SPDT, NON ILLUMINATED, F SERIES, PANEL MOUNT, 15 A

Technical Specifications

Parameters and characteristics for this part

Specification	6FB53-73/TABS

Actuator Length [x]	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	15 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Operating Temperature [Max]	65.6 °C
Operating Temperature [Min]	-17.8 °C
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

TOGGLE SWITCH, UNSEALED, ON-NONE-(ON), SPDT, NON ILLUMINATED, F SERIES, PANEL MOUNT, 15 A

Part	Illumination	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Type	Switch Function	Circuit	Voltage Rating - AC	Termination Style	Electrical Life	Bushing Thread	Panel Cutout Dimensions [diameter]
Carling Technologies 6FB53-73/TABS	Non-Illuminated	17.45 mm	65.6 °C	-17.8 °C	15 A	Standard Round	On-Mom	SPDT	125 V	Quick Connect - 0.250" (6.3mm)	25000 Steps	15/32-32	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
