FMDV1205
ActiveFairview Microwave

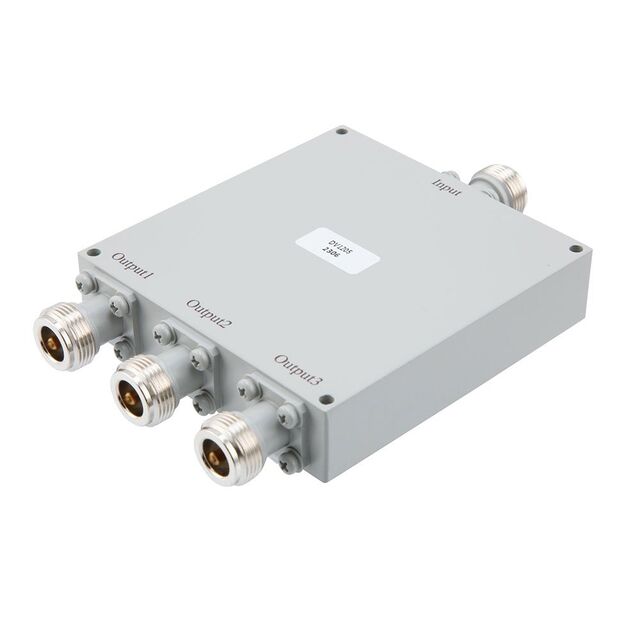

POWER DIVIDER 0.5 GHZ TYPE N
FMDV1205
ActiveFairview Microwave
POWER DIVIDER 0.5 GHZ TYPE N
Description
General part information
FMDV1205
RF Power Divider 300 MHz ~ 500 MHz Isolation (Min) 20dB, 5° Imbalance (Max), 1.35 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMDV1205 |
|---|---|
| Frequency (Max) | 500 MHz |
| Frequency (Min) | 300 MHz |
| Imbalance (Max) | 5 ° |
| Insertion Loss | 0.3 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module |
| Size / Dimension Height | 0.807 in |
| Size / Dimension Length | 3.465 in |
| Size / Dimension Width | 3.307 in |
| VSWR (Max) | 1.35 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
