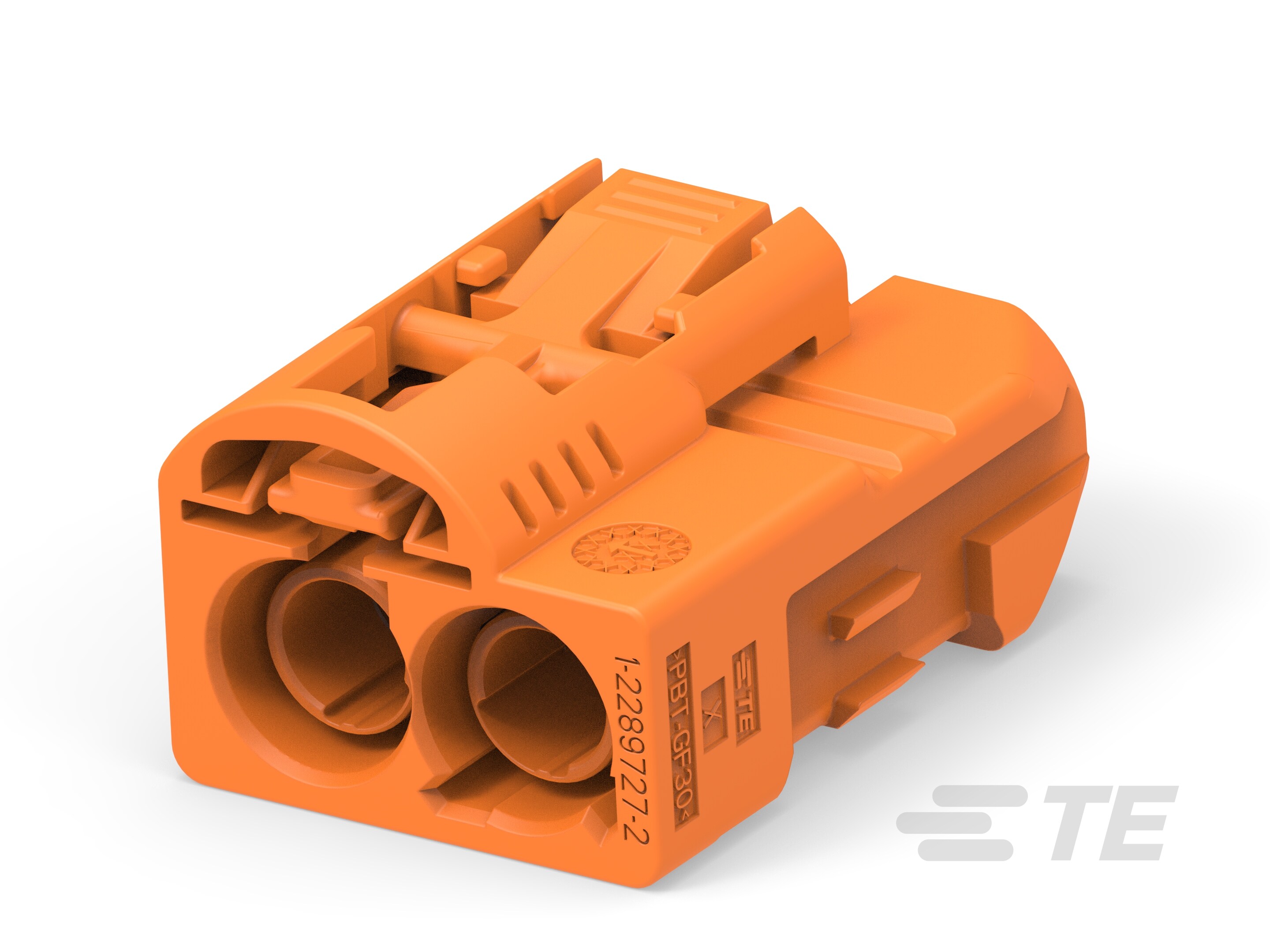

HOUSING, CPA, INLINE FEMALE, FAKRA
1-2289727-2
ActiveTE Connectivity AMP Connectors
HOUSING, CPA, INLINE FEMALE, FAKRA
Description
General part information
FAKRA RF Connector System Series
Wire-to-Wire, 180° Cable Exit, 2 Position, M Code, Housing for Female Terminals, FAKRA RF Connector System, Data Connectivity Housings
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2289727-2 |
|---|---|
| Accessory Type | Housing |
| Body Material | Polybutylene Terephthalate, Polyester, PBT |
| Color | Pastel, Orange |
| Connector Style | Fakra, SMB |
| Features - Code | M |
| Features - Positions | 2 positions |
| For Use With/Related Products | SMB, Fakra Female Contacts |
