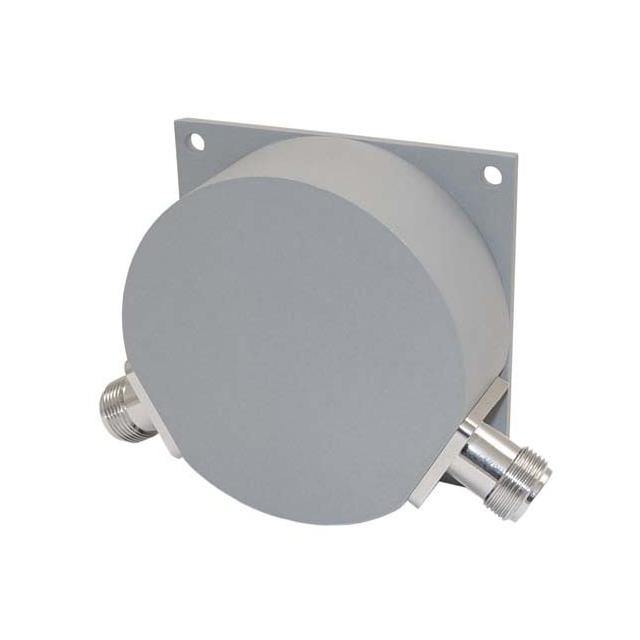

BPF2400A
ActivePasternack
FIL2.4GHZ 4-POLE FULLBAND OUT
BPF2400A
ActivePasternack
FIL2.4GHZ 4-POLE FULLBAND OUT
Description
General part information
BPF2400A
2.448GHz Center Frequency Band Pass RF Filter (Radio Frequency) 100MHz Bandwidth 0.25dB Module
Technical Specifications
Parameters and characteristics for this part
| Specification | BPF2400A |
|---|---|
| Bandwidth | 100 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 2.448 GHz |
| Height (Max) | 1.23 in |
| Insertion Loss | 0.25 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Size / Dimension Length | 3.071 in |
| Size / Dimension Width | 3.071 in |
