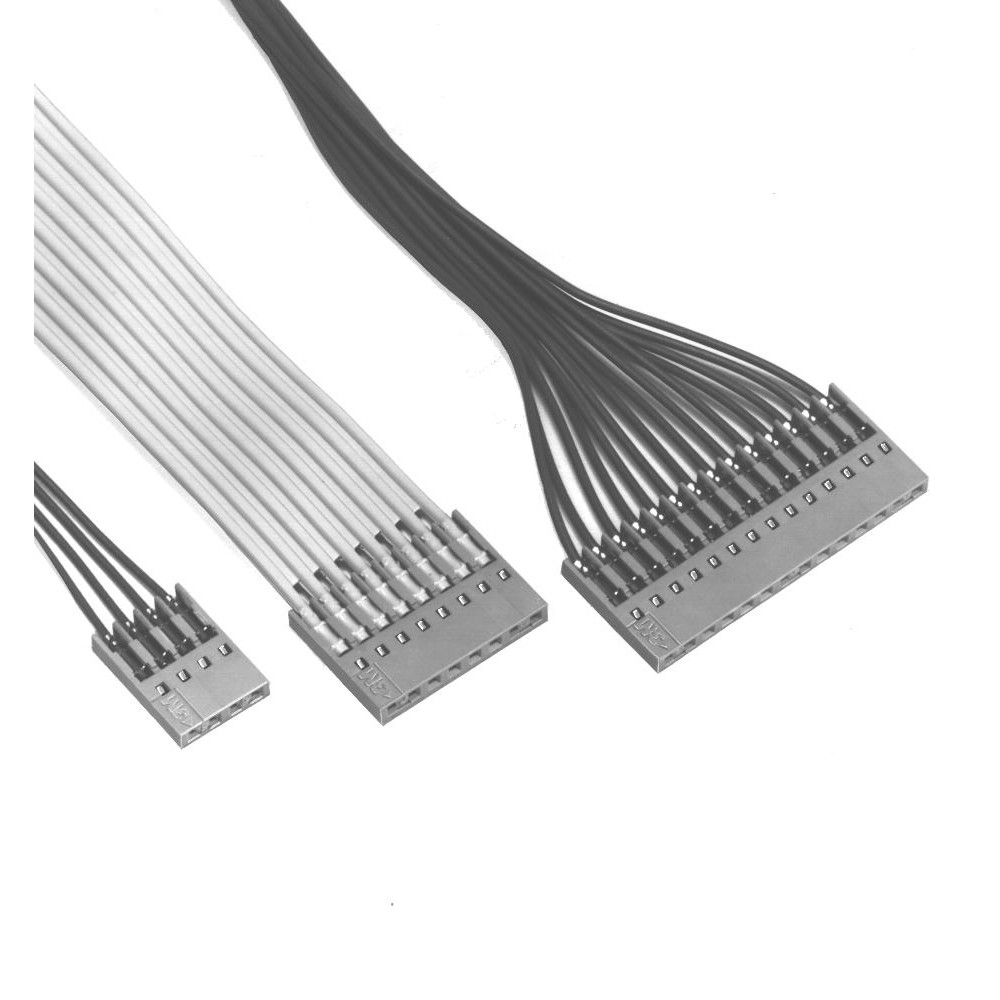

Specification	CHG-1016-001010-KCP

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Number of Rows	1
Pitch	0.1 in
Wire Gauge	Stranded or Solid
Wire Gauge (AWG) (Max)	28 AWG
Wire Gauge (AWG) (Min)	26 AWG
Wire Type	Ribbon Cable, Discrete

CHG Series

Part	Mounting Type	Contact Finish Thickness	Row Spacing	Contact Type	Number of Rows	Features	Wire Type	Cable Termination	Color	Contact Finish	Number of Positions	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Connector Type	Pitch	Fastening Type	Wire Gauge
3M Electronic Specialty CHG-2016-J01010-KCP	Free Hanging (In-Line)	30 µin	0.1 in	Female Socket	2	Closed End Polarizing Key	Discrete Ribbon Cable	IDC	Gray	Gold	16	26 AWG	28 AWG	Receptacle	0.1 in
3M Electronic Specialty CHG-2006-001010-KCP	Free Hanging (In-Line)	30 µin	0.1 in	Female Socket	2	Closed End	Discrete Ribbon Cable	IDC	Gray	Gold	6	26 AWG	28 AWG	Receptacle	0.1 in
3M Electronic Specialty CHG-1005-001010-KCP	Free Hanging (In-Line)	30 µin		Female Socket	1	Closed End	Discrete Ribbon Cable	IDC	Gray	Gold	5	26 AWG	28 AWG	Receptacle	0.1 in
3M Electronic Specialty CHG-2014-J01010-KEP	Free Hanging (In-Line)	30 µin	0.1 in	Female Socket	2	Closed End Polarizing Key	Discrete Ribbon Cable	IDC	Gray	Gold	14	22 AWG	24 AWG	Receptacle	0.1 in	Push-Pull	22 AWG 24 AWG Solid or Stranded Stranded
3M Electronic Specialty CHG-2010-001010-KCP	Free Hanging (In-Line)	30 µin	0.1 in	Female Socket	2	Closed End	Discrete Ribbon Cable	IDC	Gray	Gold	10	26 AWG	28 AWG	Receptacle	0.1 in
3M Electronic Specialty CHG-2006-001010-KEP	Free Hanging (In-Line)	30 µin	0.1 in	Female Socket	2	Closed End	Discrete Ribbon Cable	IDC	Gray	Gold	6	22 AWG	24 AWG	Receptacle	0.1 in
3M Electronic Specialty CHG-1025-001010-KEP	Free Hanging (In-Line)	30 µin		Female Socket	1	Closed End	Discrete Ribbon Cable	IDC	Gray	Gold	25	22 AWG	24 AWG	Receptacle	0.1 in	Push-Pull	22 AWG 24 AWG Solid or Stranded Stranded
3M Electronic Specialty CHG-2034-001010-KEP	Free Hanging (In-Line)	30 µin	0.1 in	Female Socket	2	Closed End	Discrete Ribbon Cable	IDC	Gray	Gold	34	22 AWG	24 AWG	Receptacle	0.1 in
3M Electronic Specialty CHG-2020-001010-KCP	Free Hanging (In-Line)	30 µin	0.1 in	Female Socket	2	Closed End	Discrete Ribbon Cable	IDC	Gray	Gold	20	26 AWG	28 AWG	Receptacle	0.1 in
3M Electronic Specialty CHG-2014-001010-KEP	Free Hanging (In-Line)	30 µin	0.1 in	Female Socket	2	Closed End	Discrete Ribbon Cable	IDC	Gray	Gold	14	22 AWG	24 AWG	Receptacle	0.1 in
