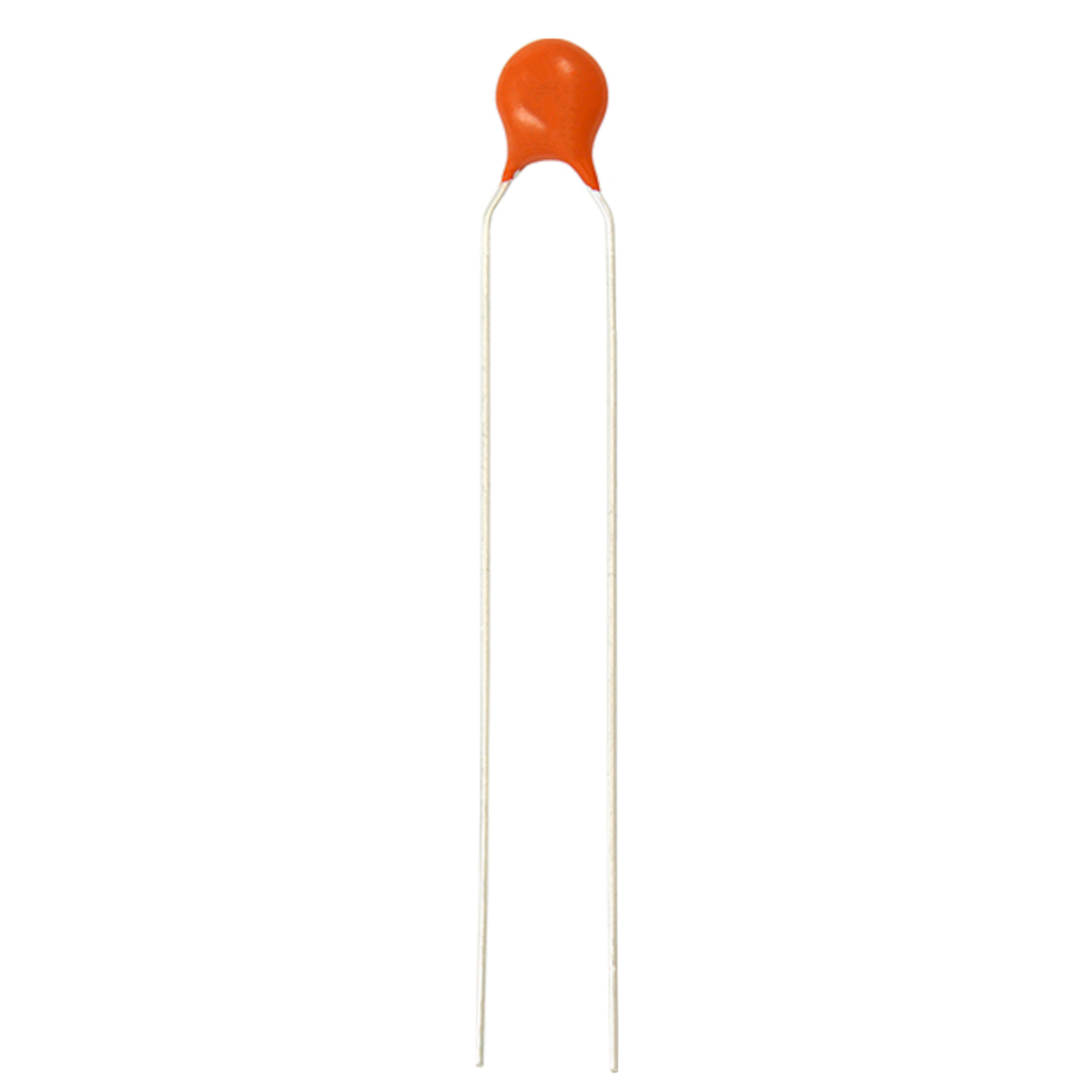

562RX5FBA102EG102J
ActiveVishay Dale
LOWER VOLTAGE CERAMIC DC DISC CAPACITORS 1000 VDC TEMPERATURE AND VOLTAGE STABILIZED
562RX5FBA102EG102J
ActiveVishay Dale
LOWER VOLTAGE CERAMIC DC DISC CAPACITORS 1000 VDC TEMPERATURE AND VOLTAGE STABILIZED
Description
General part information
562RX5FBA102EG102J
1000 pF ±10% 1000V (1kV) Ceramic Capacitor X5F Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | 562RX5FBA102EG102J |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 pF |
| Lead Style | Straight, Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Temperature Coefficient | X5F |
| Tolerance | 10 % |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
