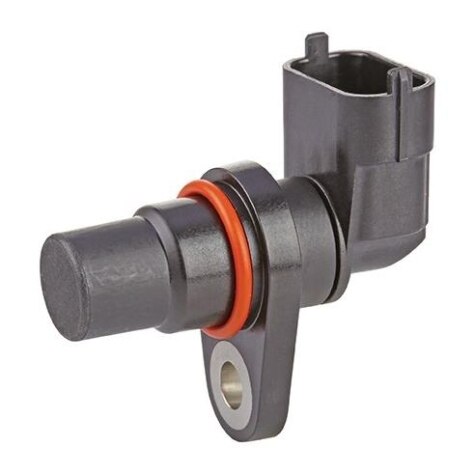

SNG-SPRF-002
ObsoleteHoneywell Sensing and Productivity Solutions
GENERAL SALES SPEED SENSOR
SNG-SPRF-002
ObsoleteHoneywell Sensing and Productivity Solutions
GENERAL SALES SPEED SENSOR
Description
General part information
SNG-SPRF-002
GENERAL SALES SPEED SENSOR
Technical Specifications
Parameters and characteristics for this part
| Specification | SNG-SPRF-002 |
|---|---|
| Current - Output (Max) | 10 mA |
| Current - Supply (Max) | 20 mA |
| Function | Unipolar Switch |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Open Collector |
| Package / Case | Module |
| Technology | Hall Effect |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 4.5 V |
