317LB3I1555T
ActiveCTS-Frequency Controls
XTAL OSC VCXO 155.5200MHZ HCMOS
317LB3I1555T
ActiveCTS-Frequency Controls
XTAL OSC VCXO 155.5200MHZ HCMOS
Description
General part information
317LB3I1555T

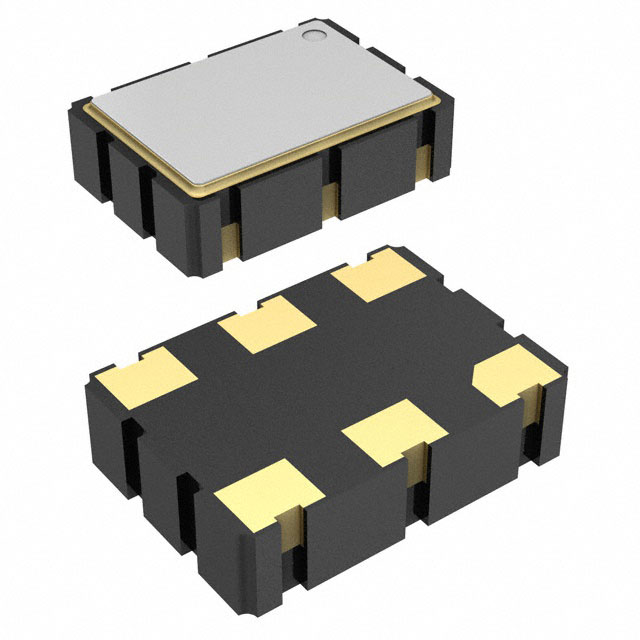

155.52 MHz VCXO HCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 317LB3I1555T |
|---|---|
| Absolute Pull Range (Maximum) | 50 ppm |
| Absolute Pull Range (Minimum) | -50 ppm |
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 30 mA |
| Frequency | 155.52 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.067 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | VCXO |
| Voltage - Supply | 3.3 V |
