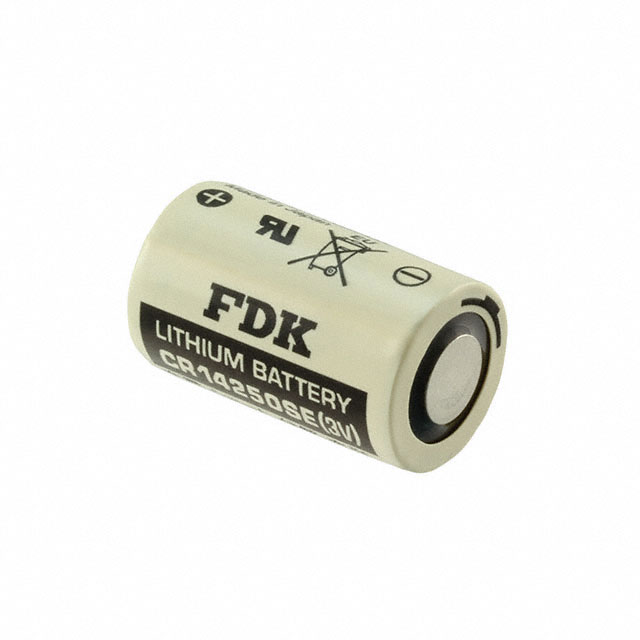

Specification	CR14250SE

Battery Cell Size	CR14250
Battery Chemistry	Lithium Manganese Dioxide
Capacity (Charge)	850 mAh
Discharge Rate (Current)	500 µA
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shipping Info	Due to restrictions, only ground shipment is allowed.
Size / Dimension Diameter	0.57 in
Size / Dimension Height	0.98 in
Storage/Refrigeration Temperature	Room Temperature
Termination Style	Button Top (Extending)
Voltage - Rated	3 VDC
Weight	9 g
