ANT-450-CW-RCS-SMA
ActiveTE Connectivity AMP Connectors
HELICAL ANTENNA, LTE, EXTERNAL M
ANT-450-CW-RCS-SMA
ActiveTE Connectivity AMP Connectors
HELICAL ANTENNA, LTE, EXTERNAL M
Description
General part information
ANT-450-CW-RCS-SMA

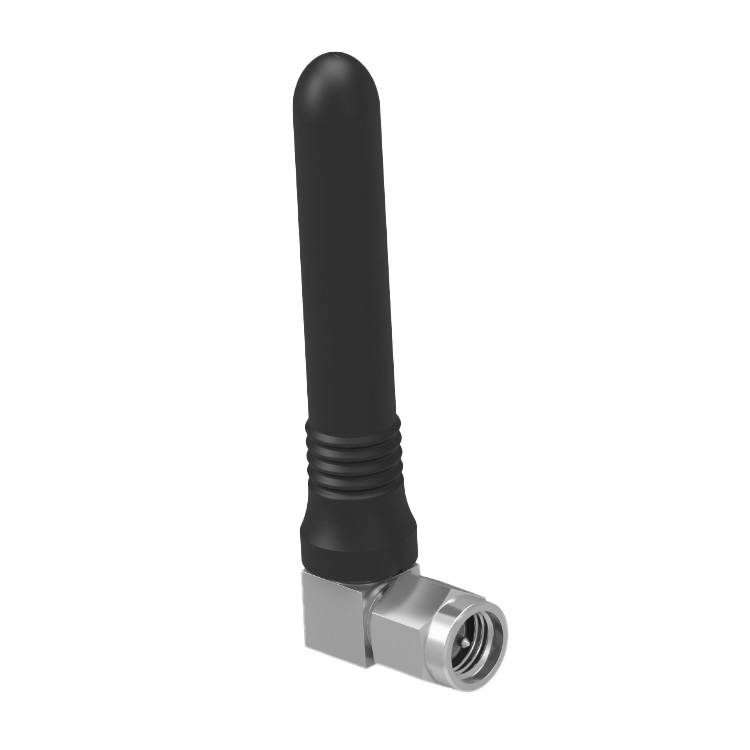

458.75MHz 5G, LTE Whip, Right Angle RF Antenna 450MHz ~ 467.5MHz -3.5dBi SMA Male Screw Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-450-CW-RCS-SMA |
|---|---|
| Antenna Type | Right Angle, Whip |
| Applications | 5G, LTE |
| Frequency (Center/Band) | 458.75 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 467.5 MHz |
| Frequency Range (Min) | 450 MHz |
| Gain | -3.5 dBi |
| Height (Max) | 1.772 in |
| Mounting Type | Screw Mount |
| Number of Bands | 1 |
| Power - Max | 5 VA |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 2.5 |
