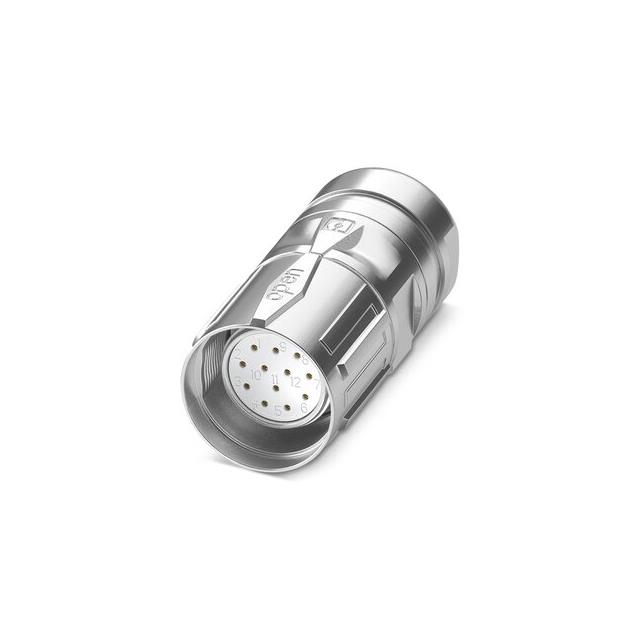

Specification	1619512

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polyamide, Nylon 6/6, PA66
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	17
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Material	Gadolinium-Zinc
Shell Size - Insert	M23-17
Shielding	Shielded
Type	For Female Sockets
