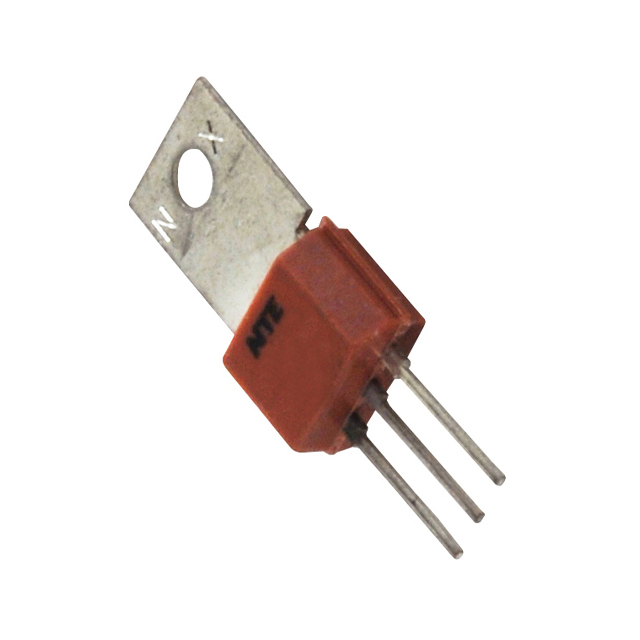

D40K2
ActiveNTE Electronics, Inc
TRANS NPN DARL 50V 2A TO202
D40K2
ActiveNTE Electronics, Inc
TRANS NPN DARL 50V 2A TO202
Description
General part information
D40K2
Bipolar (BJT) Transistor NPN - Darlington 50 V 2 A 1.67 W Through Hole TO-202
Technical Specifications
Parameters and characteristics for this part
| Specification | D40K2 |
|---|---|
| Current - Collector (Ic) (Max) | 2 A |
| Current - Collector Cutoff (Max) | 500 nA |
| DC Current Gain (hFE) (Min) | 10000 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-202 Long Tab |
| Package Name | TO-202 |
| Power - Max | 1.67 W |
| Transistor Type | NPN, Darlington |
| Vce Saturation (Max) | 1.5 V |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
