MAXM17630EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated

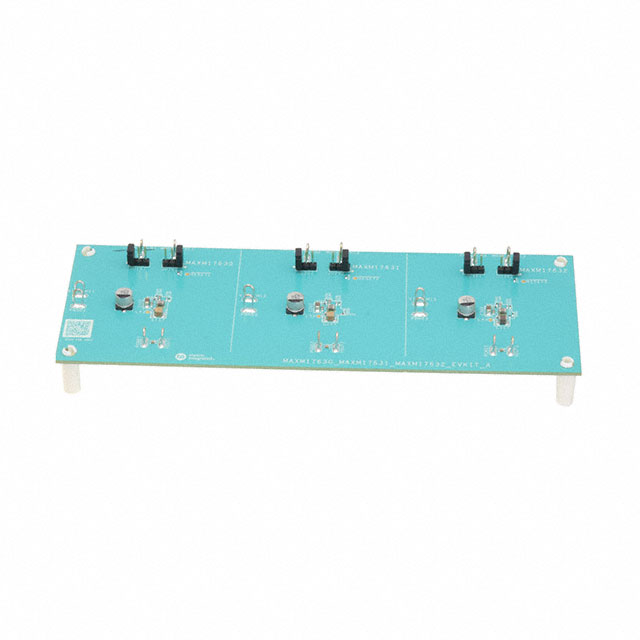

EVAL BOARD FOR MAXM17630
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM17630EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAXM17630
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17630EVKIT# | MAXM17630 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 1 A | 1 A |
| Current - Output (Max) | - | 1 A |
| Frequency - Switching | 900 kHz | 900 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 16-SMD Module |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 3 mm |
| Size / Dimension | - | 1.7 mm |
| Size / Dimension | - | 3 mm |
| Size / Dimension | - | 0.12 in |
| Size / Dimension | - | 0.06 " |
| Size / Dimension | - | 0.12 " |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-eMGA (3x3) |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17630 | MAXM17630 |
| Voltage - Input (Max) | - | 36 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 36 V | 36 V |
| Voltage - Input [Min] | 4.5 V | 4.5 V |
| Voltage - Output | 3.3 V | 3.3 V |
| Voltage - Output 1 | - | 3.3 V |
