P092N-FC25BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P092N-FC25BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.33
		10	$ 2.91
		25	$ 2.60
		40	$ 2.44
		80	$ 2.39
		230	$ 2.29
		440	$ 1.87
		1040	$ 1.61
		5200	$ 1.46

Description

General part information

P092N Series

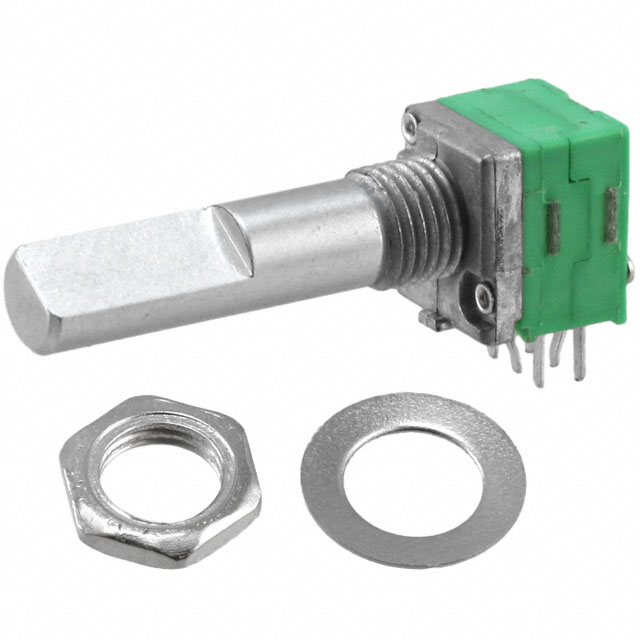

10k Ohm 2 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P092N-FC25BR10K	P092N Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	-	0.591 - 0.787 in
Actuator Length	-	15 mm
Actuator Length	-	20 mm
Actuator Length [x]	0.984 in	0.984 in
Actuator Length [x]	25 mm	25 mm
Actuator Type	Flatted	Knurled and Slotted, Flatted
Adjustment Type	Side Adjustment	Side Adjustment
Built in Switch	False	False
Bushing Thread	0.75	0.75
Bushing Thread	M7	M7
Number of Gangs	2	2
Number of Turns	1	1
Power (Watts)	0.05 W	0.025 - 0.05 W
Power (Watts)	50 mW	50 mW
Power (Watts)	-	0.025 W
Resistance (Ohms)	10k	10k
Resistance (Ohms)	-	5 - 100 kOhms
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body [x]	0.447 in	0.447 in
Size - Body [x]	11.35 mm	11.35 mm
Size - Body [y]	0.374 in	0.374 in
Size - Body [y]	9.5 mm	9.5 mm
Taper	Linear	Logarithmic, Linear, Reverse Logarithmic
Termination Style	Board Locks, PC Pins	Board Locks, PC Pins
Tolerance	20 %	20 %

P092N Series

POT 5K OHM 1/40W PLASTIC LOG

Part	Number of Gangs	Resistance (Ohms)	Tolerance	Resistive Material	Actuator Type	Rotation	Taper	Adjustment Type	Size - Body [y]	Size - Body [x]	Size - Body [y]	Size - Body [x]	Bushing Thread	Bushing Thread	Termination Style	Actuator Length [z]	Actuator Length	Number of Turns	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Power (Watts)	Power (Watts)	Power (Watts)	Actuator Length [z]	Actuator Length [x]	Actuator Length [x]	Resistance (Ohms)
TT Electronics/BI P092N-QC15AR5K	2	5 kOhms	20 %	Conductive Plastic	Knurled and Slotted	300 ░	Logarithmic	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	0.75	M7	Board Locks, PC Pins	0.591 in	15 mm	1	0.236 in	6 mm	0.025 W	0.025 W
TT Electronics/BI P092N-QC20BR20K	2	20 kOhms	20 %	Conductive Plastic	Knurled and Slotted	300 ░	Linear	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	0.75	M7	Board Locks, PC Pins	0.787 in		1	0.236 in	6 mm	0.05 W		50 mW	20 mm
TT Electronics/BI P092N-FA15CR50K	2	50 kOhms	20 %	Conductive Plastic	Flatted	300 ░	Reverse Logarithmic	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	0.75	M7	Board Locks, PC Pins	0.591 in	15 mm	1	0.236 in	6 mm	0.025 W	0.025 W
TT Electronics/BI P092N-FC25BR20K	2	20 kOhms	20 %	Conductive Plastic	Flatted	300 ░	Linear	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	0.75	M7	Board Locks, PC Pins			1	0.236 in	6 mm	0.05 W		50 mW		0.984 in	25 mm
TT Electronics/BI P092N-QC15BR10K	2		20 %	Conductive Plastic	Knurled and Slotted	300 ░	Linear	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	0.75	M7	Board Locks, PC Pins	0.591 in	15 mm	1	0.236 in	6 mm	0.05 W		50 mW				10k
TT Electronics/BI P092N-QC20AR20K	2	20 kOhms	20 %	Conductive Plastic	Knurled and Slotted	300 ░	Logarithmic	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	0.75	M7	Board Locks, PC Pins	0.787 in		1	0.236 in	6 mm	0.025 W	0.025 W		20 mm
TT Electronics/BI P092N-QC20AR100K	2	100 kOhms	20 %	Conductive Plastic	Knurled and Slotted	300 ░	Logarithmic	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	0.75	M7	Board Locks, PC Pins	0.787 in		1	0.236 in	6 mm	0.025 W	0.025 W		20 mm
TT Electronics/BI P092N-QC15BR100K	2	100 kOhms	20 %	Conductive Plastic	Knurled and Slotted	300 ░	Linear	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	0.75	M7	Board Locks, PC Pins	0.591 in	15 mm	1	0.236 in	6 mm	0.05 W		50 mW
TT Electronics/BI P092N-FC15AR20K	2	20 kOhms	20 %	Conductive Plastic	Flatted	300 ░	Logarithmic	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	0.75	M7	Board Locks, PC Pins	0.591 in	15 mm	1	0.236 in	6 mm	0.025 W	0.025 W
TT Electronics/BI P092N-FA20CR50K	2	50 kOhms	20 %	Conductive Plastic	Flatted	300 ░	Reverse Logarithmic	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	0.75	M7	Board Locks, PC Pins	0.787 in		1	0.236 in	6 mm	0.025 W	0.025 W		20 mm
